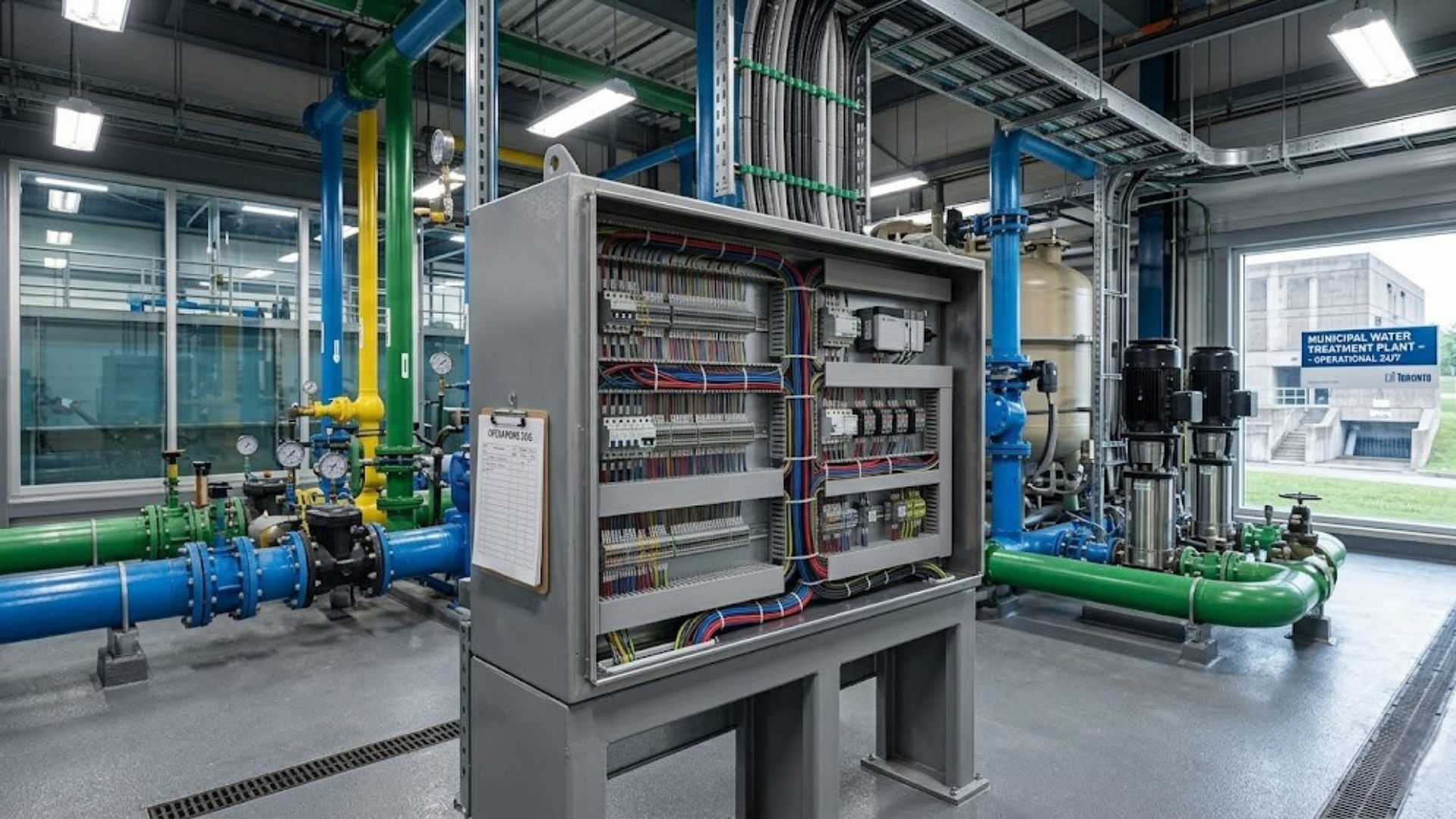

If you've ever opened a well-built industrial control panel and noticed how cleanly the wiring runs from component to component, chances are wiring ducts were doing the heavy lifting. These are among the most practical, underappreciated components in panel construction, and choosing the right one can save you real time during installation, maintenance, and future upgrades.
Here's a straightforward breakdown of what wiring ducts are, why they're used, and what to look for when selecting one.
What Is a Wiring Duct?
A wiring duct, also called a cable duct or slotted duct, is a channeled enclosure used to organize, protect, and route electrical wires and cables inside control panels, automation systems, machines, and electrical enclosures. They mount directly inside the panel and create a structured path for wiring.
The defining feature of most industrial wiring ducts is the slotted sidewall design. The slots and fingers allow individual wires to enter and exit the duct at any point along its length without removing the entire cable bundle. This makes wiring cleaner during the build and significantly easier to work with.
Why Wiring Ducts Matter
Disorganized wiring isn't just an aesthetic problem, it creates real operational issues. Tracing a fault through a tangled bundle takes far longer than it should, inspections are harder to pass, and future modifications often turn into a full rewire.
Wiring ducts solve this at the source.
Here's what they do:
Cable Management and Organization: Wiring ducts keep large wire bundles neatly organized and routed, eliminating tangled, chaotic wiring inside crowded panels and automation cabinets.
Wire and Cable Protection: The duct body safeguards cables from physical damage, dust, moisture, and potential fire hazards, providing electrical insulation and supporting safer, more compliant electrical installations.
Easier Installation and Maintenance: The slotted finger design allows individual wires to be added, removed, or rerouted without disturbing the entire cable run. This simplifies installation, speeds up fault-finding, and makes future panel upgrades significantly less disruptive.
Compliance Support: Organized, protected wiring is easier to inspect and verify against electrical standards. Wiring ducts are essential components for industrial wiring in low and medium voltage electrical panels and help ensure compliance requirements are met.
Space Optimization: Ducts tidy up panels and can be used in corners to maximize space in crowded cabinets. Removing the wall below the slots is also possible when you need extra room for cable passage, giving you additional clearance without changing the duct itself.
Types of Wiring Ducts
Industrial wiring ducts come in several configurations. Understanding the differences helps you pick the right one for your application.
Wide-Finger Wiring Ducts: Wide-finger ducts feature larger slots and finger spacing. Typically, 8mm slots and 12mm fingers. They are best suited for standard industrial panel builds with medium to large gauge wiring. The wider openings make wire routing fast and easy, which is a real advantage in high-volume panel production.
Narrow-Finger Wiring Ducts: Narrow-finger ducts have a tighter slot and finger spacing. Typically, 4mm slots and 6mm fingers. The smaller openings keep fine-gauge wires contained and prevent them from slipping out, making narrow-finger ducts the right choice for precision builds, instrumentation panels, and high-wire-density applications.
Duct Covers: Covers snap or lock onto the top of the duct body to fully enclose the cables once wiring is complete. Standard snap-on covers work for most applications.
E Series - Wide Fingers

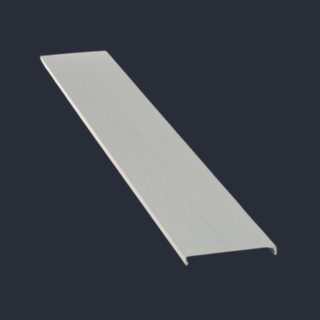

Duct Cover
E/4 Series - Narrow Fingers
Bottom Panel Design Configurations
Grey ducts come in three bottom configurations, B1, B2, and B3, which differ between the two series based on the duct size and mounting requirements.
Narrow Fingers E/4 Series
- B1:25mm wide base, single row of mounting holes
- B2:25mm wide base, double row of mounting holes with raised side channels (6.5mm)
- B3: 25mm wide base, triple row of mounting holes with full raised side channels on both sides (6.5mm each)
Wide Fingers E Series
- B1: 25mm wide base, double row of mounting holes with a 6.5mm raised side channel
- B2: 25mm wide base, double row of mounting holes with raised side channels on both sides (6.5mm each)
- B3: 25mm wide base, triple row of mounting holes across a wider 50mm channel with full raised side channels on both sides
The bottom type is listed alongside each part number in the product selection guide, so when you're ordering, you'll know exactly which configuration you're getting.
Picking the Right Material
Wiring ducts are available in three primary materials, each suited to different environments and application requirements.
Self-Extinguishing Rigid PVC Class 1 (UL94-V0)
The standard material for most industrial applications. Self-extinguishing, durable, and well-suited to control panels, automation systems, machine building, and electrical enclosures in standard industrial environments.
Halogen-Free PC/ABS
A halogen-free material suitable for electrical panels in specialized environments where low halogen content is required. Including railway and public sector installations. In the event of fire, it limits the emission of toxic and corrosive gases.
Halogen-Free Noryl
Also halogen-free, Noryl is particularly suited to railway applications, including inside locomotives and carriages. Like PC/ABS, it meets fire-safety requirements in environments where people are present.
Key Specs to Know Before You Order
When selecting a wiring duct, the main specifications to confirm are:
- Base width: How wide the inside of the duct channel is, determining how many wires it can carry
- Height: The depth of the sidewall, taller ducts hold more cables
- Slot and finger size: Wide (8mm/12mm) for standard wiring, narrow (4mm/6mm) for fine gauge or high-density builds
- Module spacing:20mm for wide-finger, 10mm for narrow-finger, relevant for aligning with DIN rail and component placement
- Length:Standard bars are 2m
- Material:PVC for standard industrial, PC/ABS or Noryl for railway/transit/public sector
- Color:Grey is standard, white is used in clean rooms and aesthetic-sensitive applications, and blue is used as a visual indicator for specific circuit types
Where They're Used
Industrial wiring ducts are commonly found in:
- Industrial and electrical control panels
- Automation systems and PLC cabinets
- Electrical enclosures
- OEM machinery and equipment
- Machine building applications
- Power distribution panels
- HVAC control systems
- Data and communication cabinets
- Process control equipment
- Railway and transit systems
- Infrastructure projects
- Public sector electrical installations
If there are organized wires in a professionally built panel, there are almost certainly wiring ducts making that possible.
We Carry a Full Line of Industrial Wiring Ducts
TCH Industrial stocks both the Wide Fingers E Series and Narrow Fingers E/4 Series in a full range of sizes, with grey as standard and white and blue available. All ducts are RoHS compliant, EN50085-2-3 certified, and UL listed, and are in stock for fast shipping across Canada and the United States from our distribution centers in Toronto, Buffalo, Calgary, Dallas, and Montreal.
