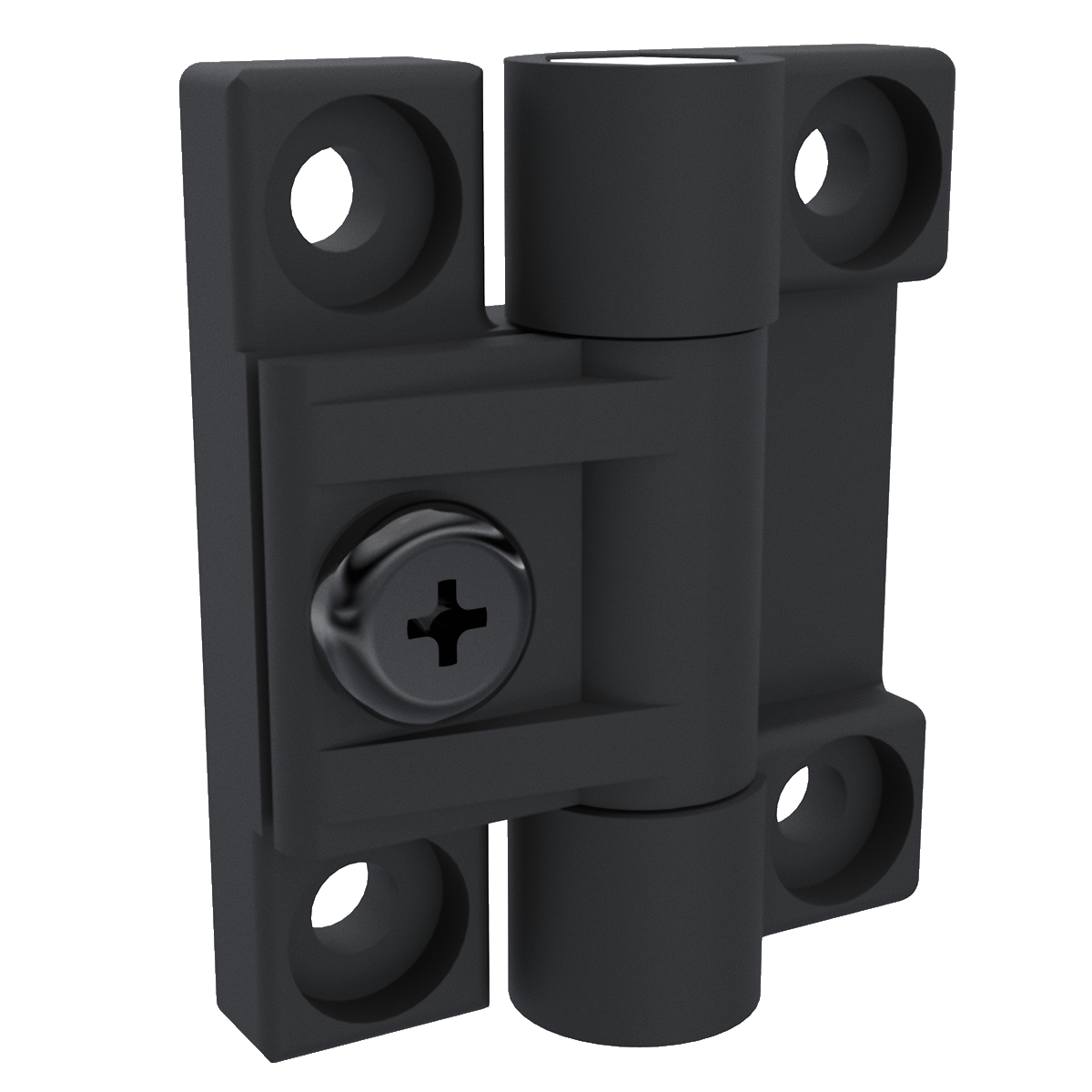

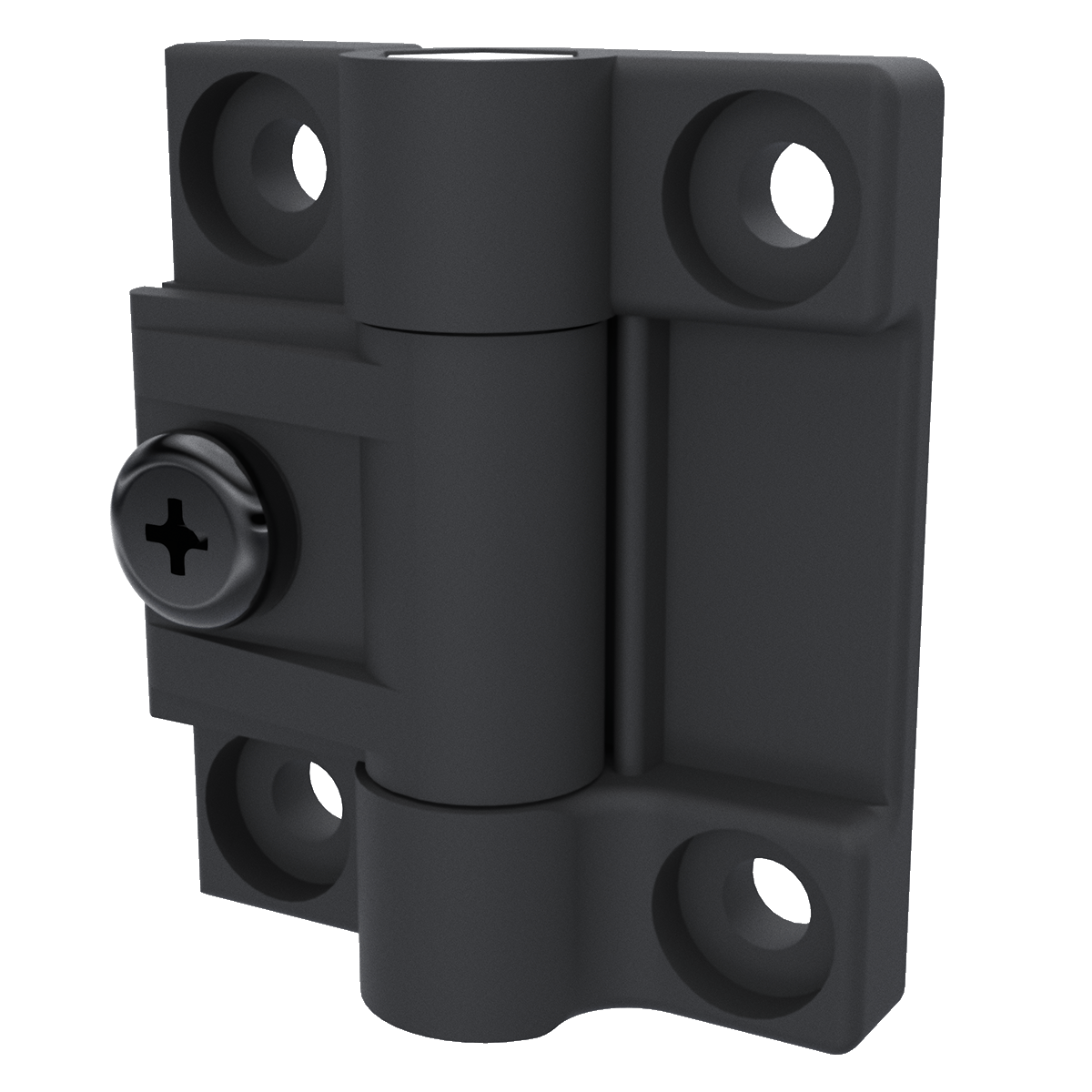

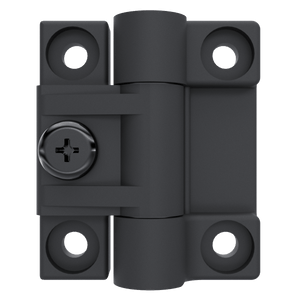

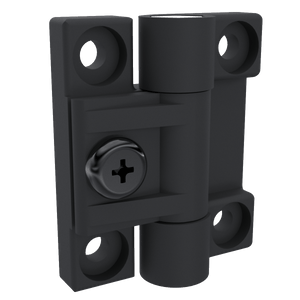

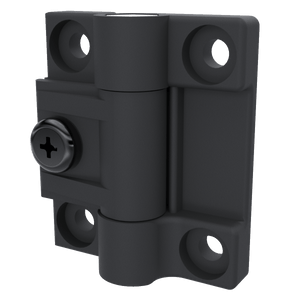

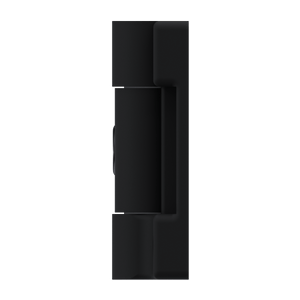

Southco Adjustable Torque Position Control Hinge - E6-10-501-20, Black
Quote Only
Holds a door, lid, or panel at any angle in its swing with no prop rod, gas spring, or detent. Symmetric torque of 35 in-lbf (3.95 Nm) forward and reverse means the same effort opens and closes the door, and the panel stays where it is released.
Fits electrical enclosures, control cabinets, medical carts, vending and kiosk doors, display and monitor mounts, transit interior panels, and machinery access covers, anywhere a technician needs both hands free while a door stays open.

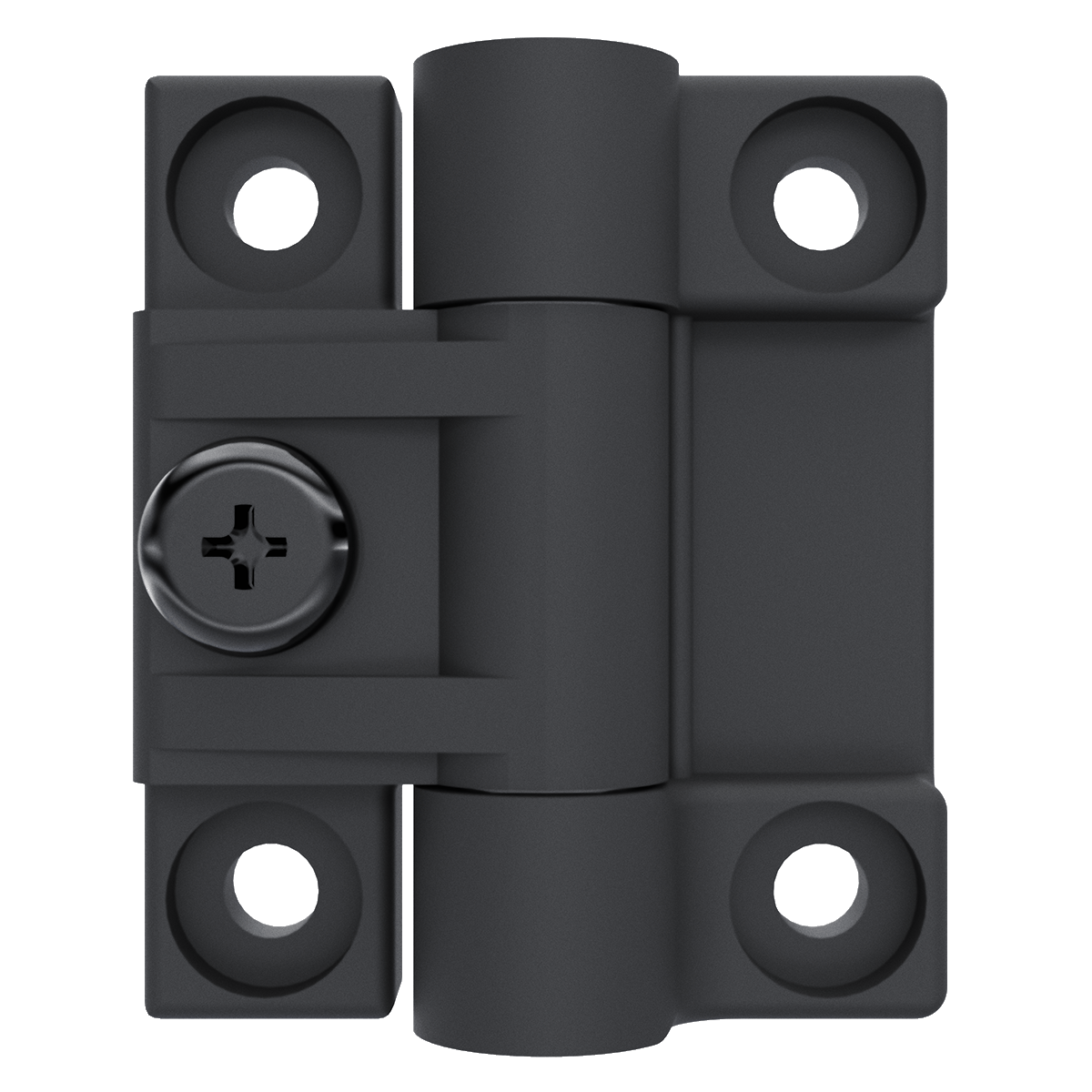

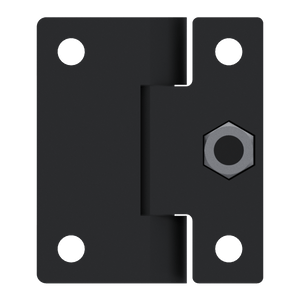

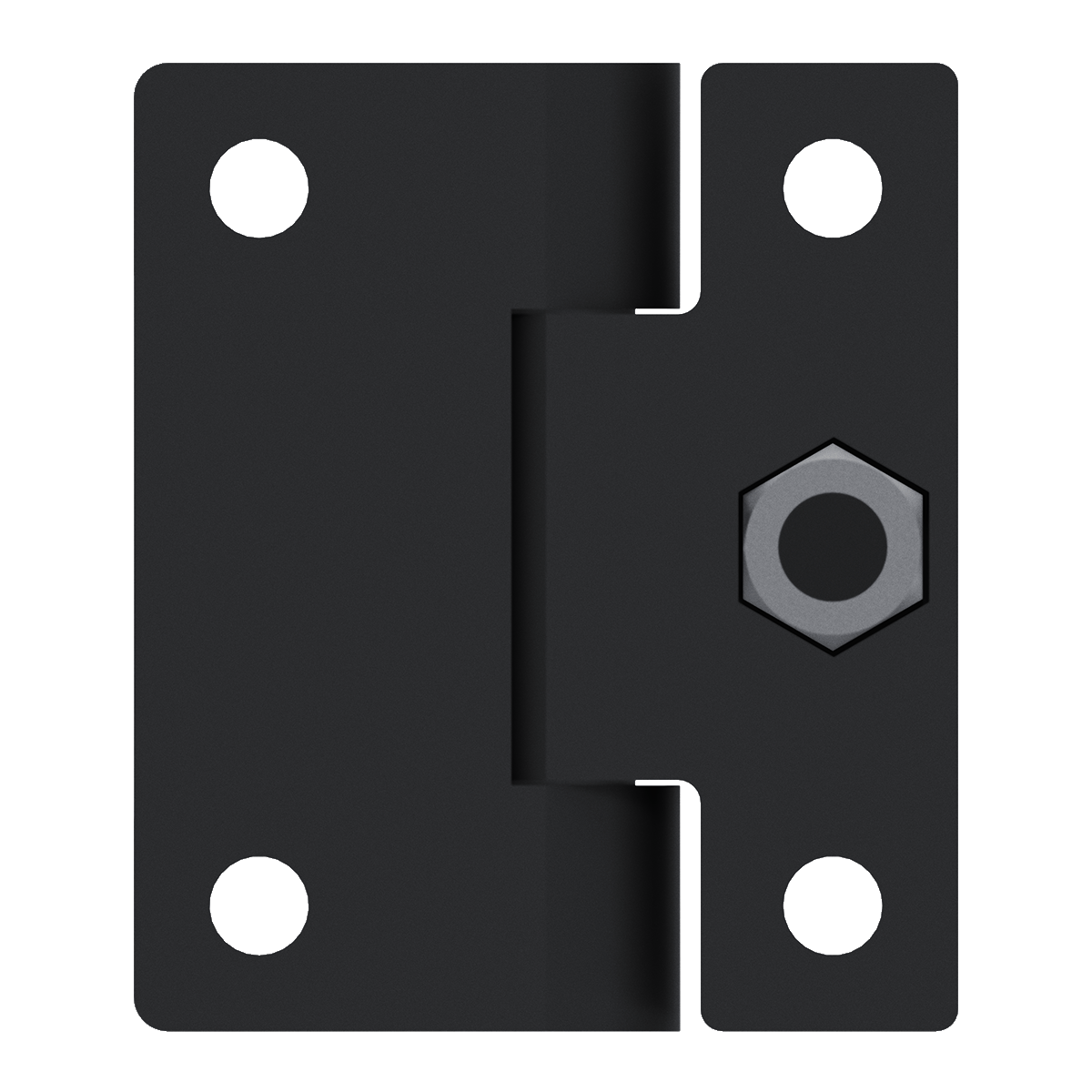

One screw sets the operating effort after installation, so a door weight change late in a build does not force a hinge change. Thru holes accept screws or rivets, and the non-removable pin keeps the leaves together during handling and service.

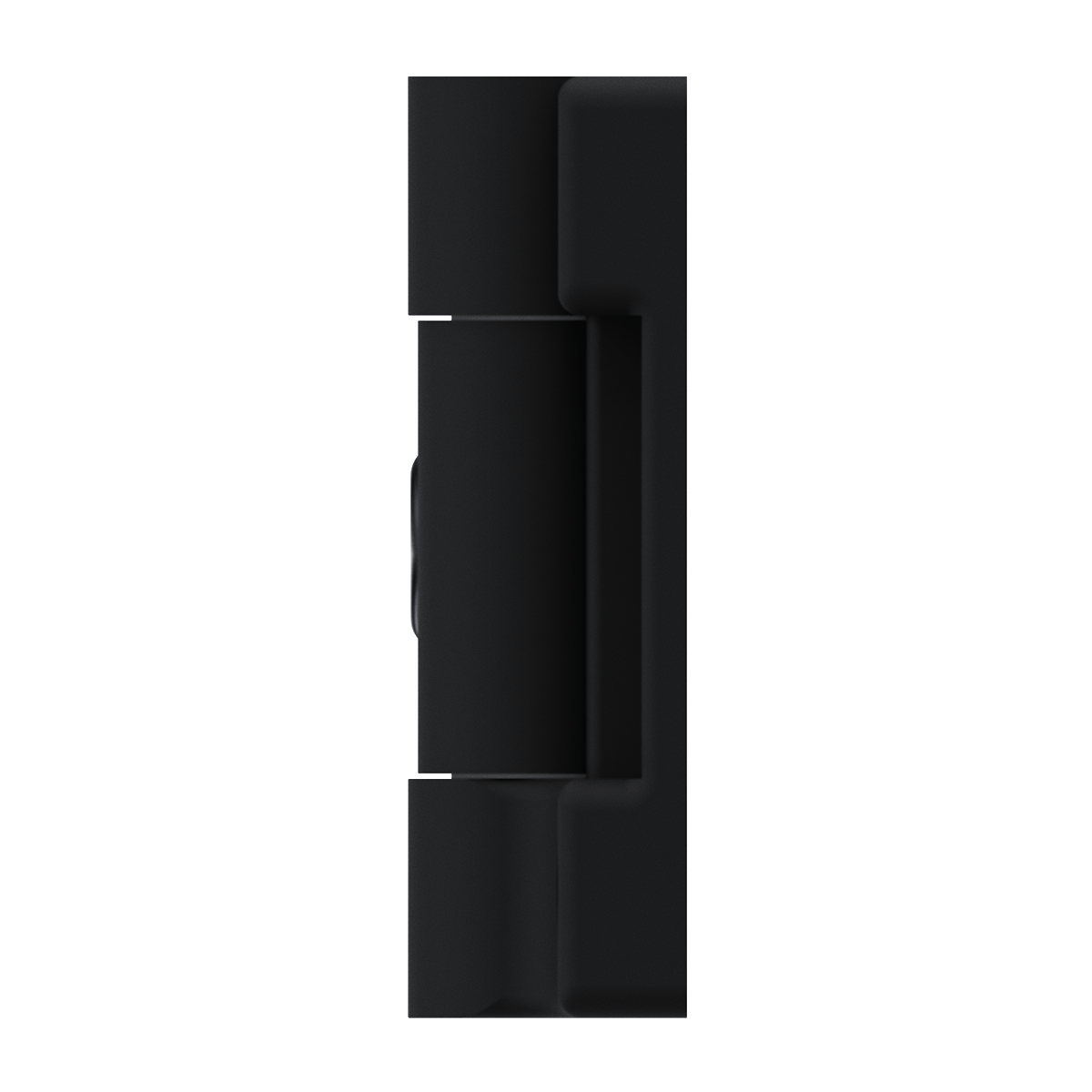

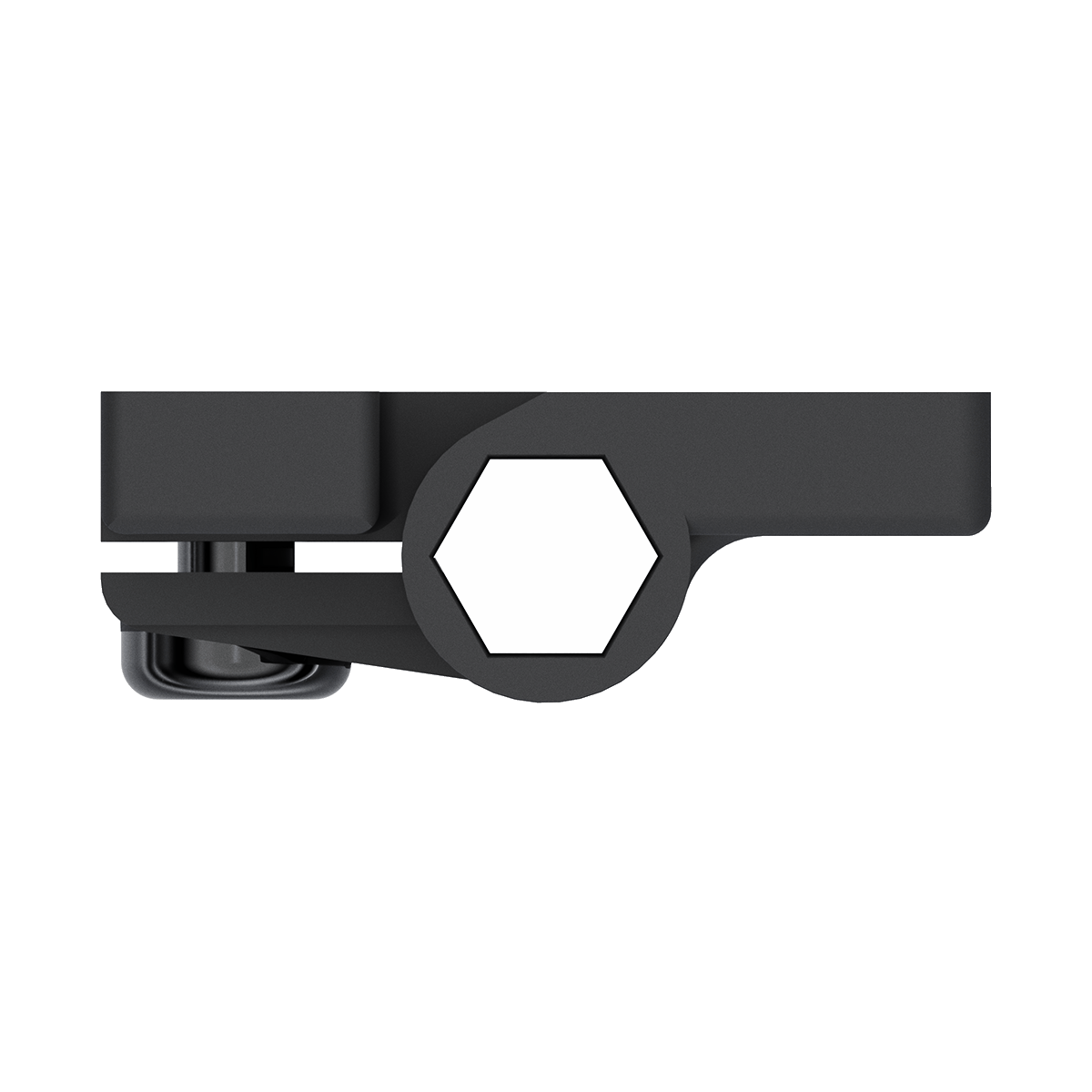

Molded acetal copolymer in black resists corrosion and runs without lubrication. Measures 2-5/16-inch (58.4mm) wide by 3/4-inch (19.6mm) high with a 2-1/2-inch (63.5mm) leaf length. RoHS-compliant and made in Mexico
Measures 1-inch [25.4mm] wide by 1-1/2-inch [38.2mm] high with a 1-7/8-inch [47.6mm] leaf length, the medium size in the Southco E6 series, rated for a minimum of 20,000 cycles within +/-20% of set torque.
