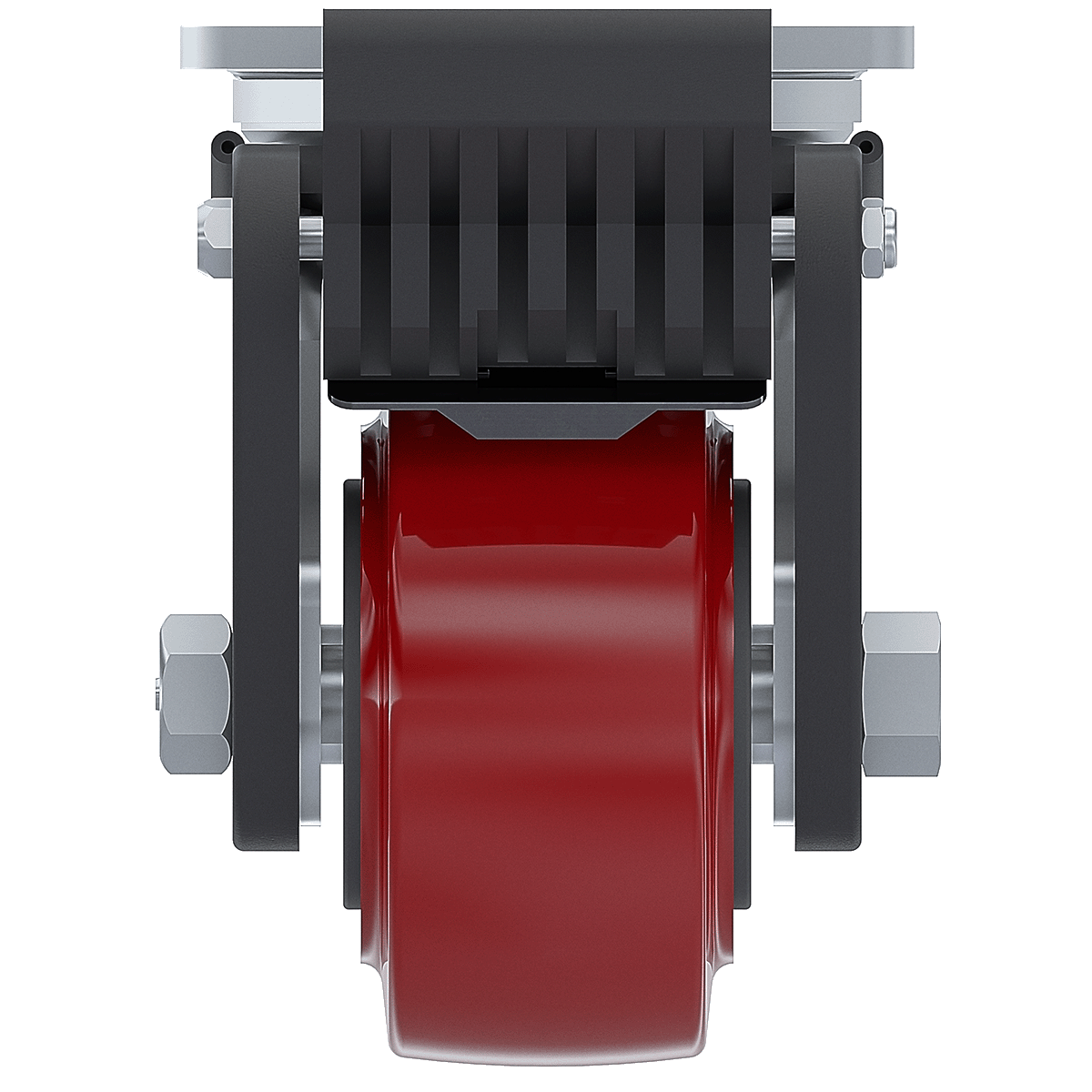

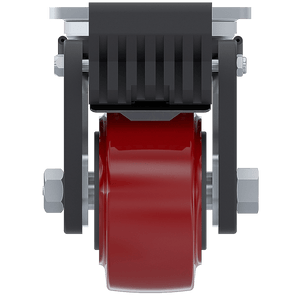

4" x 2" Maroon Polyurethane Swivel Caster with Wheel Brake

511-4045853

TCH

Description Documents Spec

• 4" x 2" Heavy duty premium polyurethane maroon tire swivel caster with wheel brake
• Heavy duty steel rig & fork frame
• Roller bearing construction
• Mounting plate size 4" x 4.5". Load capacity: 270kg/600lbs. Bright Zinc finish
• Matches 511-4042853 (Swivel), 511-4043853 (Rigid) & 511-4044853 (Full Brake)

MFG Item No: 511-4045853

Material: Steel / Polyurethane

Color/Finish: Polyurethane

Size: Large

Width: 8.20in [208.3mm]

Height: 5.59in [142.0mm]

Depth: 3.94in [100.1mm]

Weight: 4.65Lbs [2.1kg]

Load Capacity: 500.0 [1102.31 Lbs]

Caster Wheel Diameter: 4.0 x 2.0in

Caster Wheel Diameter: 4.0 x 4.5in

Country of Origin: China

PDF Drawing

DXF File
