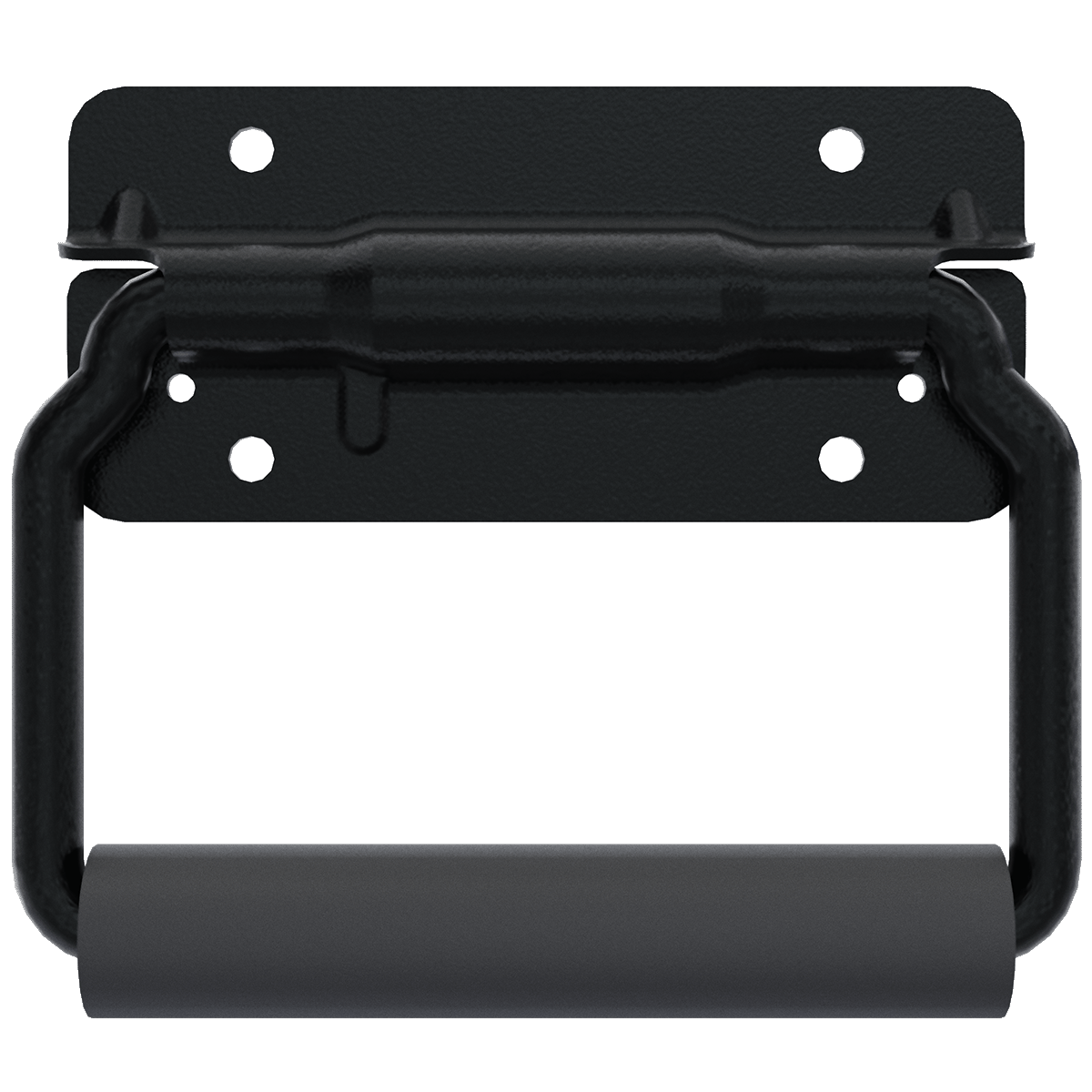

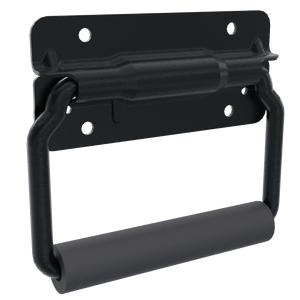

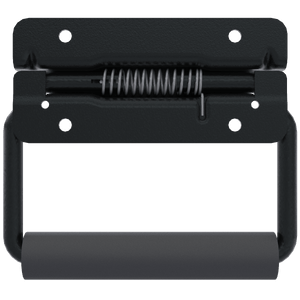

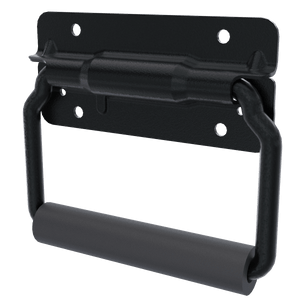

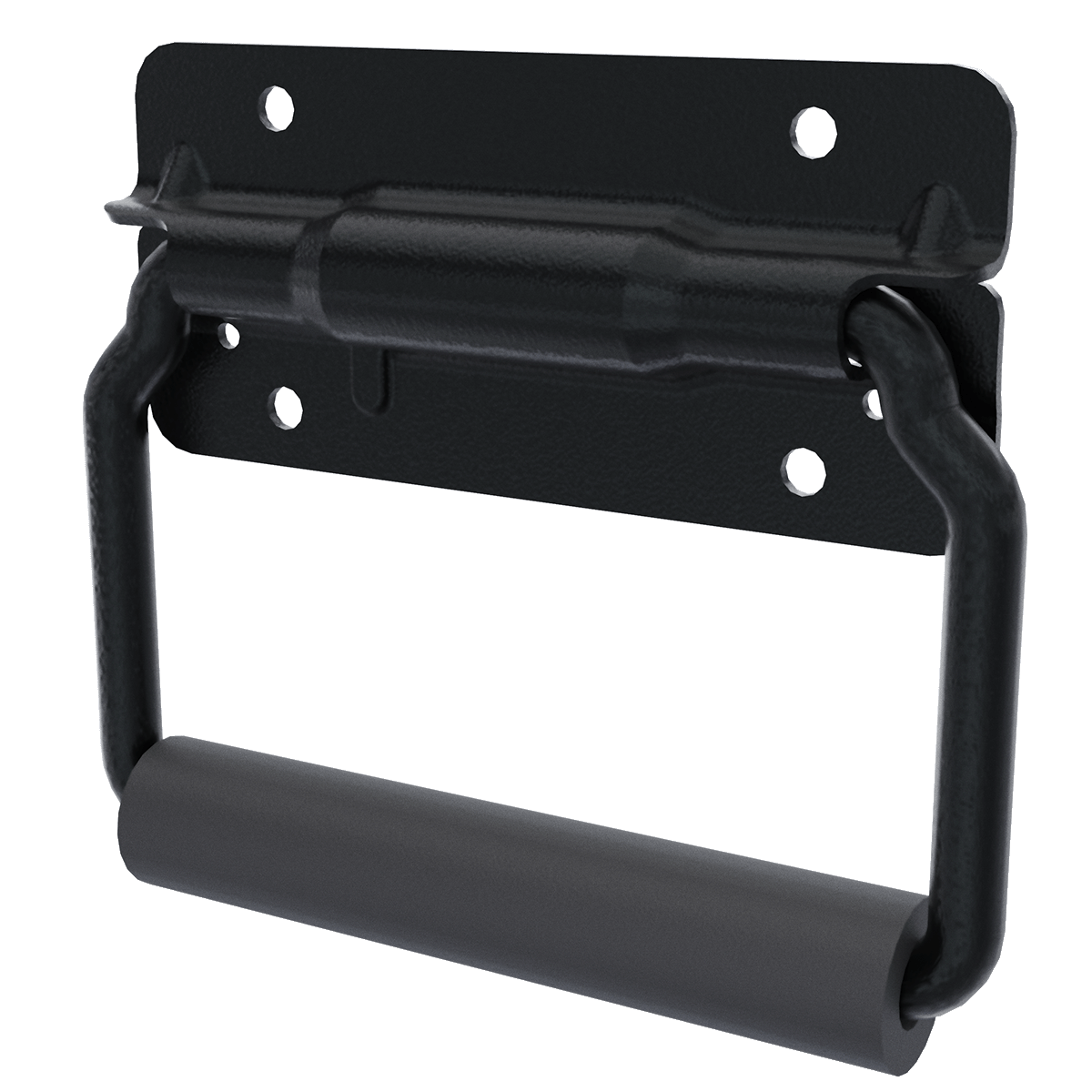

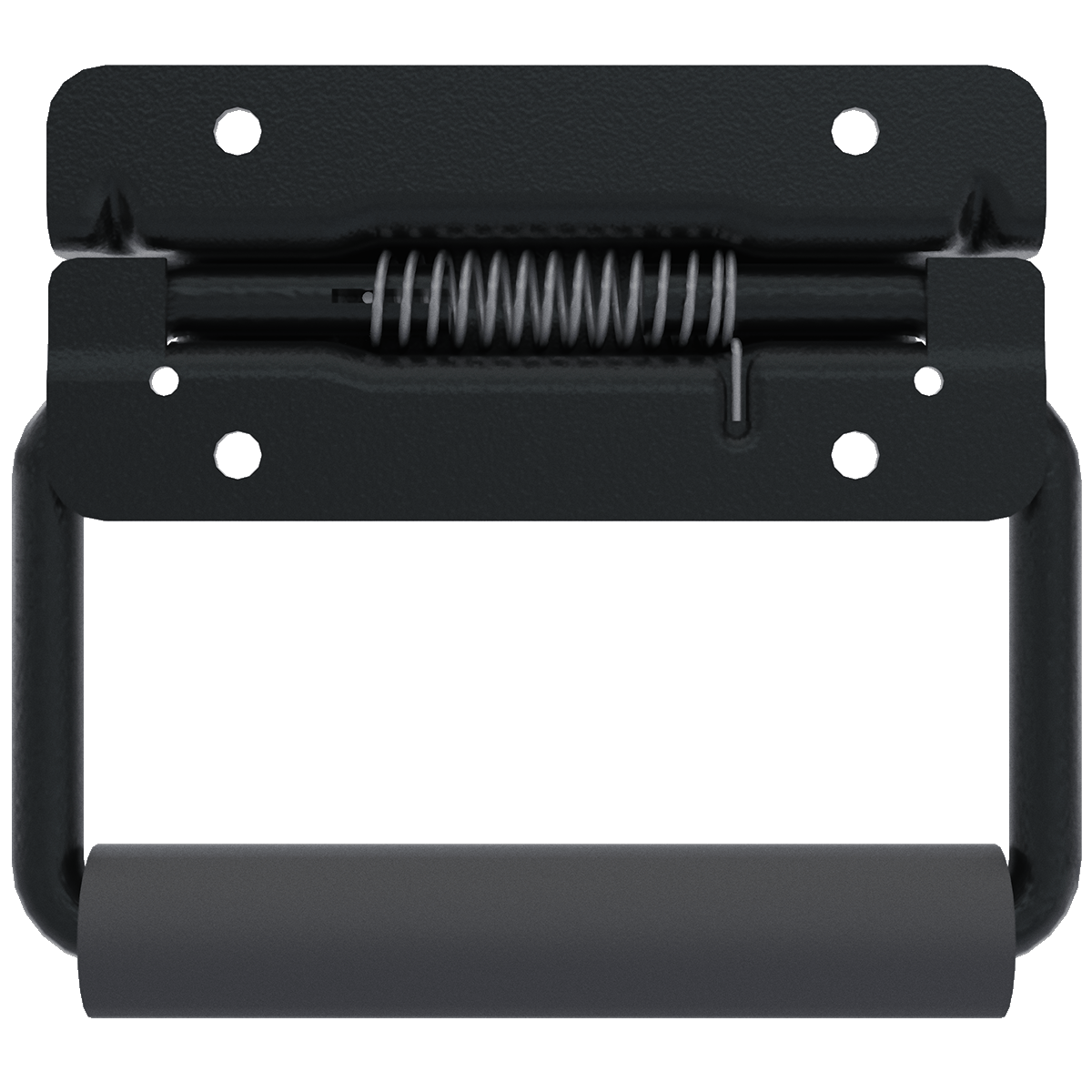

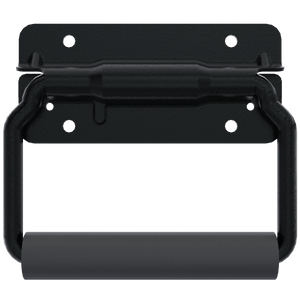

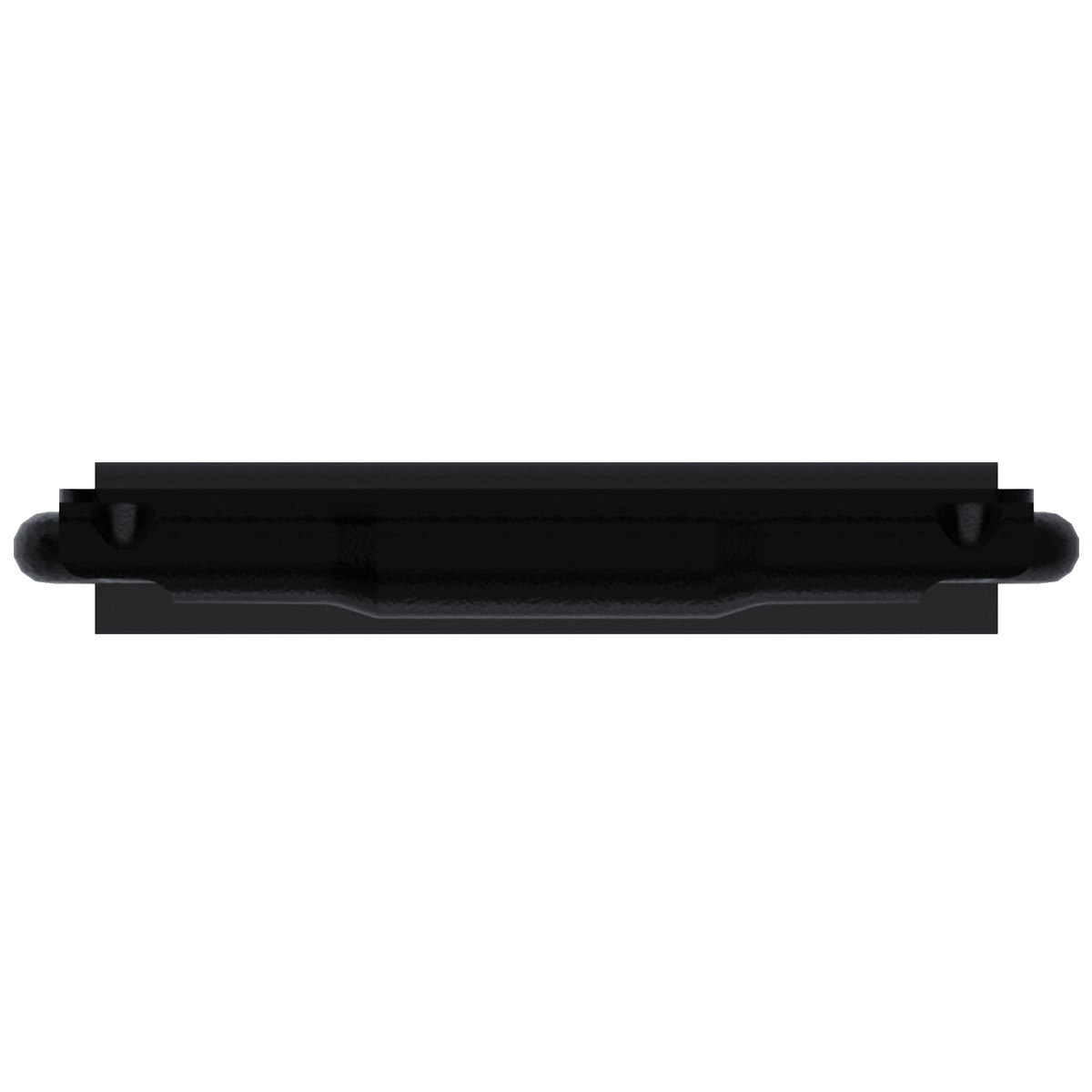

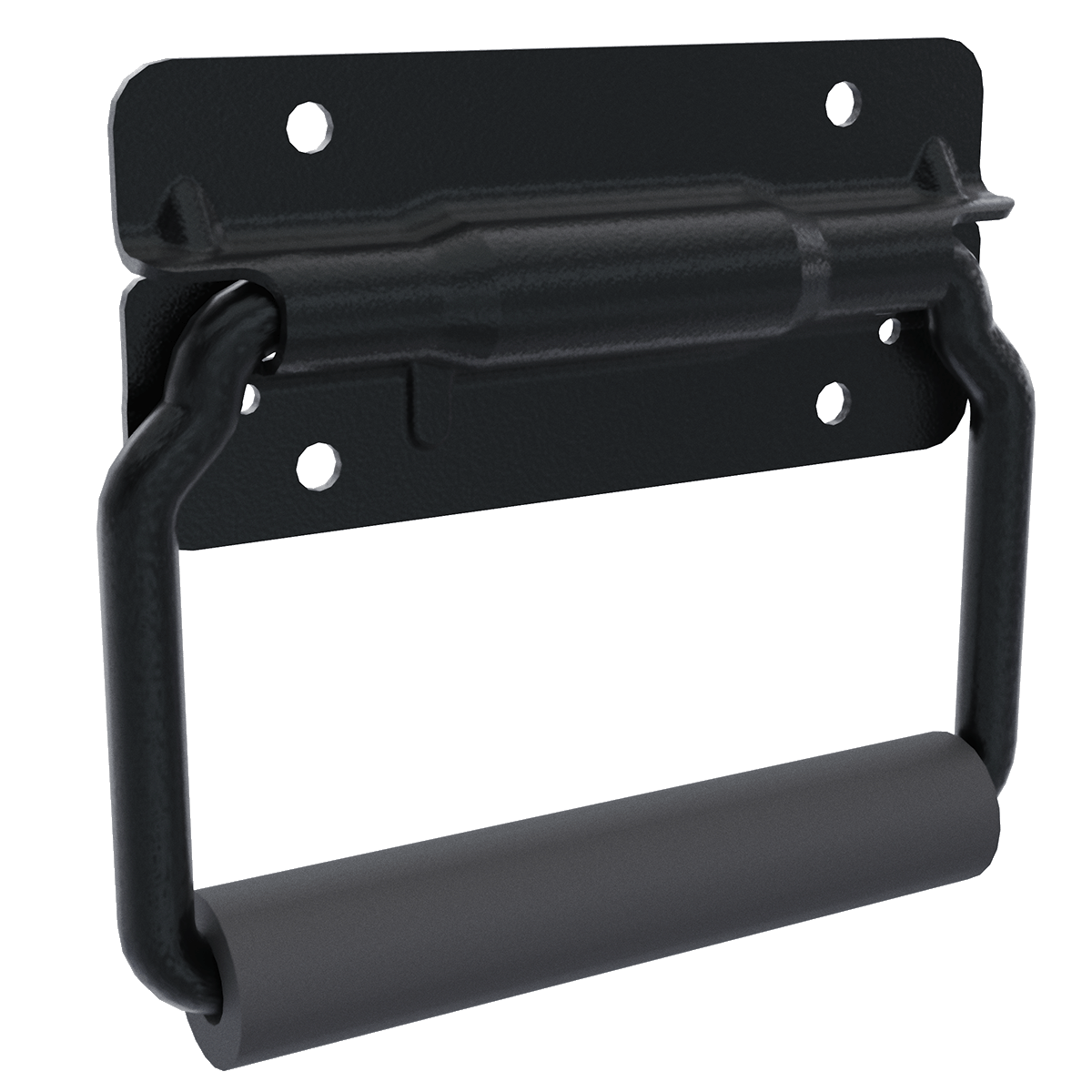

Lifts and pulls loaded cases through a 5/16-inch [8mm] steel bail with a 3/4-inch [19mm] padded grip. A stainless steel torsion spring returns the bail flat against the plate the moment the hand lets go, so nothing hangs off the panel face. Heavy Duty Surface-mount Handle, Black
Fastens to road cases, amplifier and server racks, tool chests, job boxes, speaker cabinets, shipping crates and sheet metal enclosures. Surface mounting suits panels too thin, too full or too structural to cut a recessed dish into.

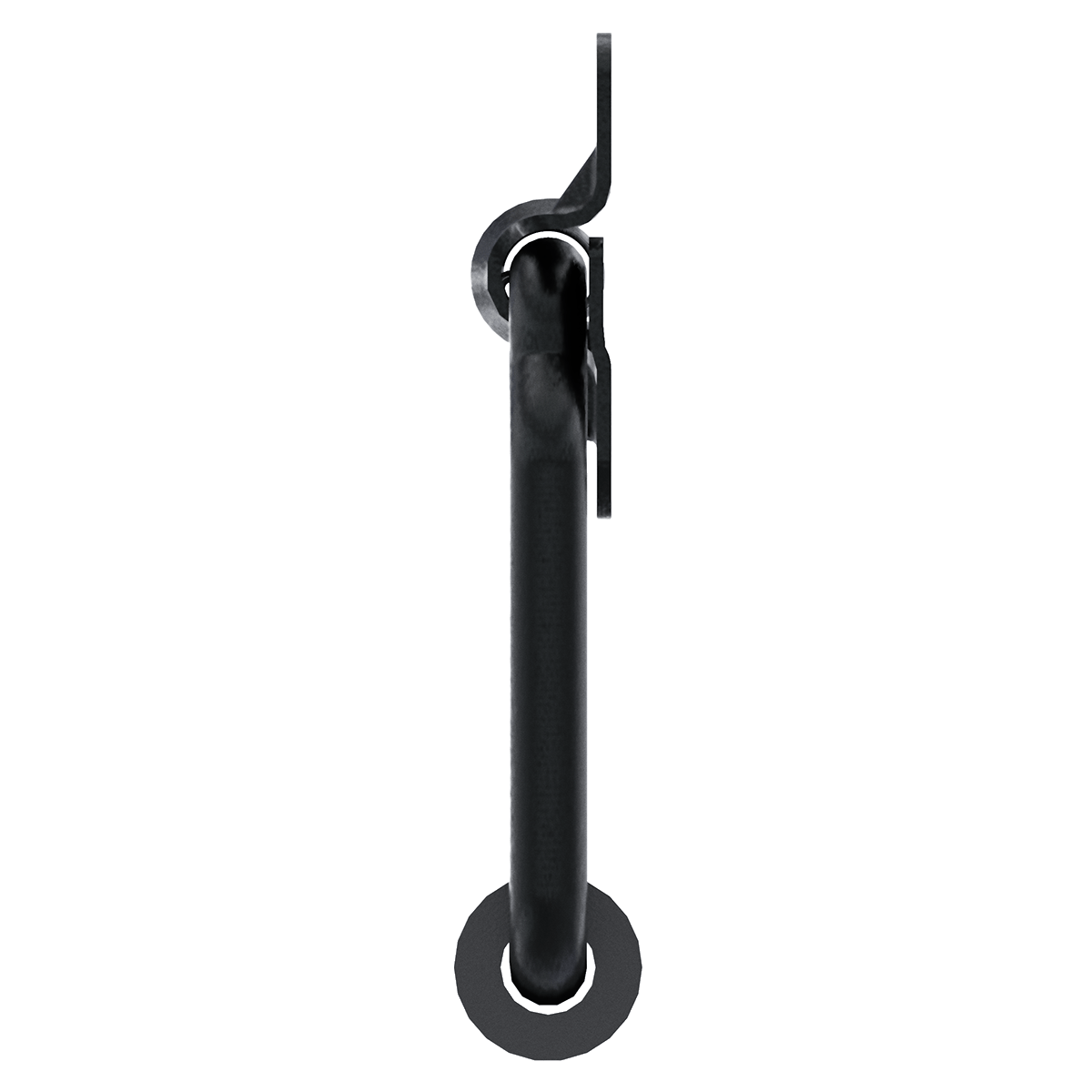

The bail swings up to 90 degrees, holding the grip at a natural lifting angle rather than folding back over the hand. Four .203in. [5.2mm] mounting holes run through the retainer plate, which is flanged top and bottom for stiffness.
Steel retainer plate and formed steel bail in a black finish. The torsion spring is stainless steel, so the return action survives damp trailers and outdoor load-ins. The grip is molded rubber at 3/4-inch [19mm], sized for a gloved hand.
No panel cutout and no recess pocket, so the plate bolts straight to the outside face. That makes it a fast retrofit on cases and boxes already in service. Weighs 0.50lb [0.2kg] and ships one per unit.
