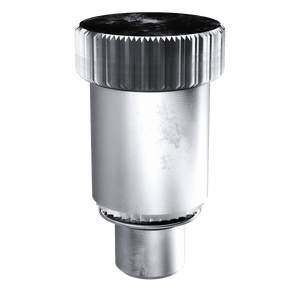

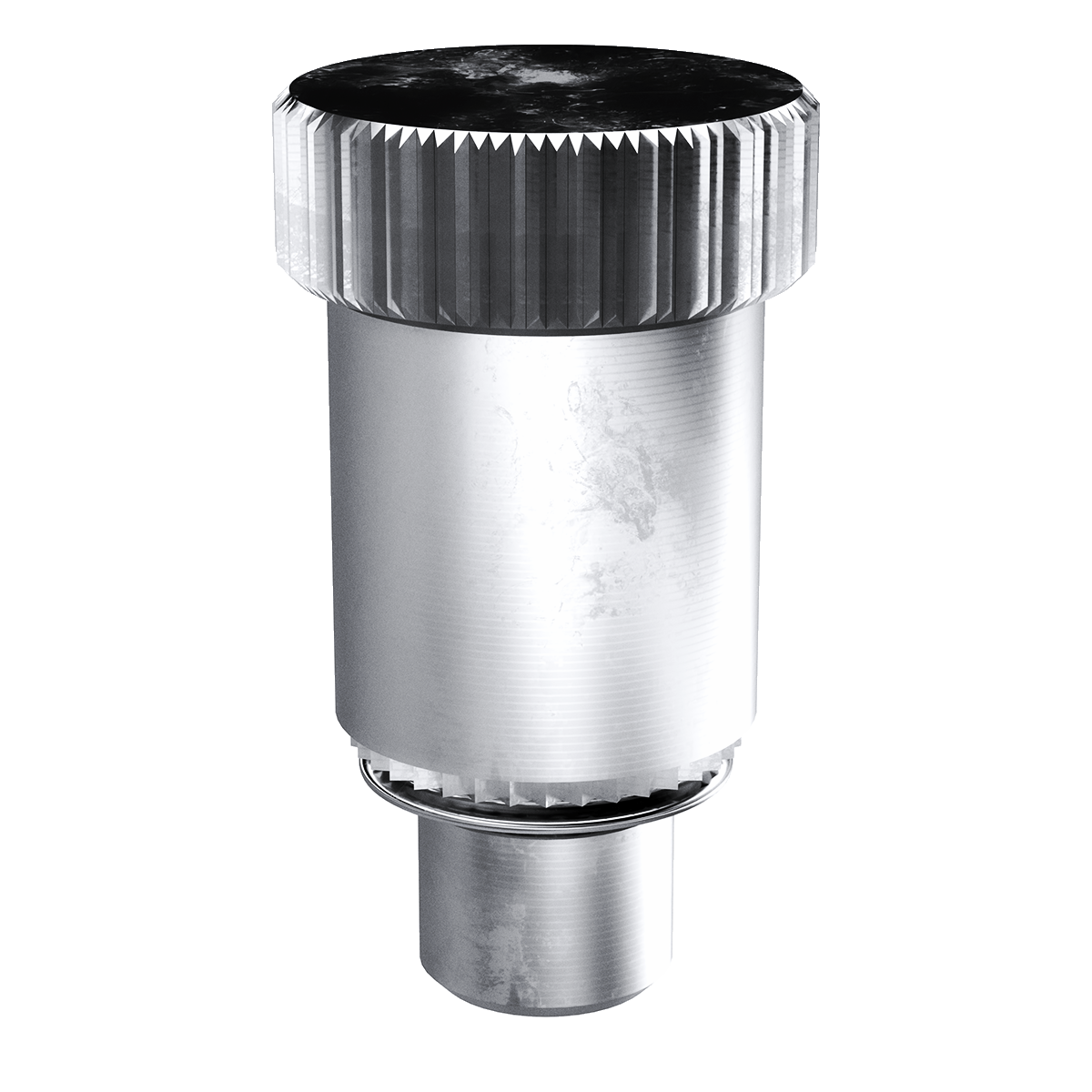

Self-Clinching Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4, 0.250 x 0.310, 100 Pack

Self-Clinching Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4, 0.250 x 0.310, 100 Pack

Self-Clinching Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4, 0.250 x 0.310, 100 Pack

Self-Clinching Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4, 0.250 x 0.310, 100 Pack

Self-Clinching Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4, 0.250 x 0.310, 100 Pack

Captive Fastener

559-PSL2044

$99,999.00 CAD

Specifications :

MFG Part Number : CPN-04-4
Product Group: CPN
Material: Steel; Heat Treated
Finish: Bright Nickel
Thread Type: Imperial
Thread Size: Unthreaded
Hole Diameter: 0.328 +0.003 -0.000
Sheet Thickness: 0.06

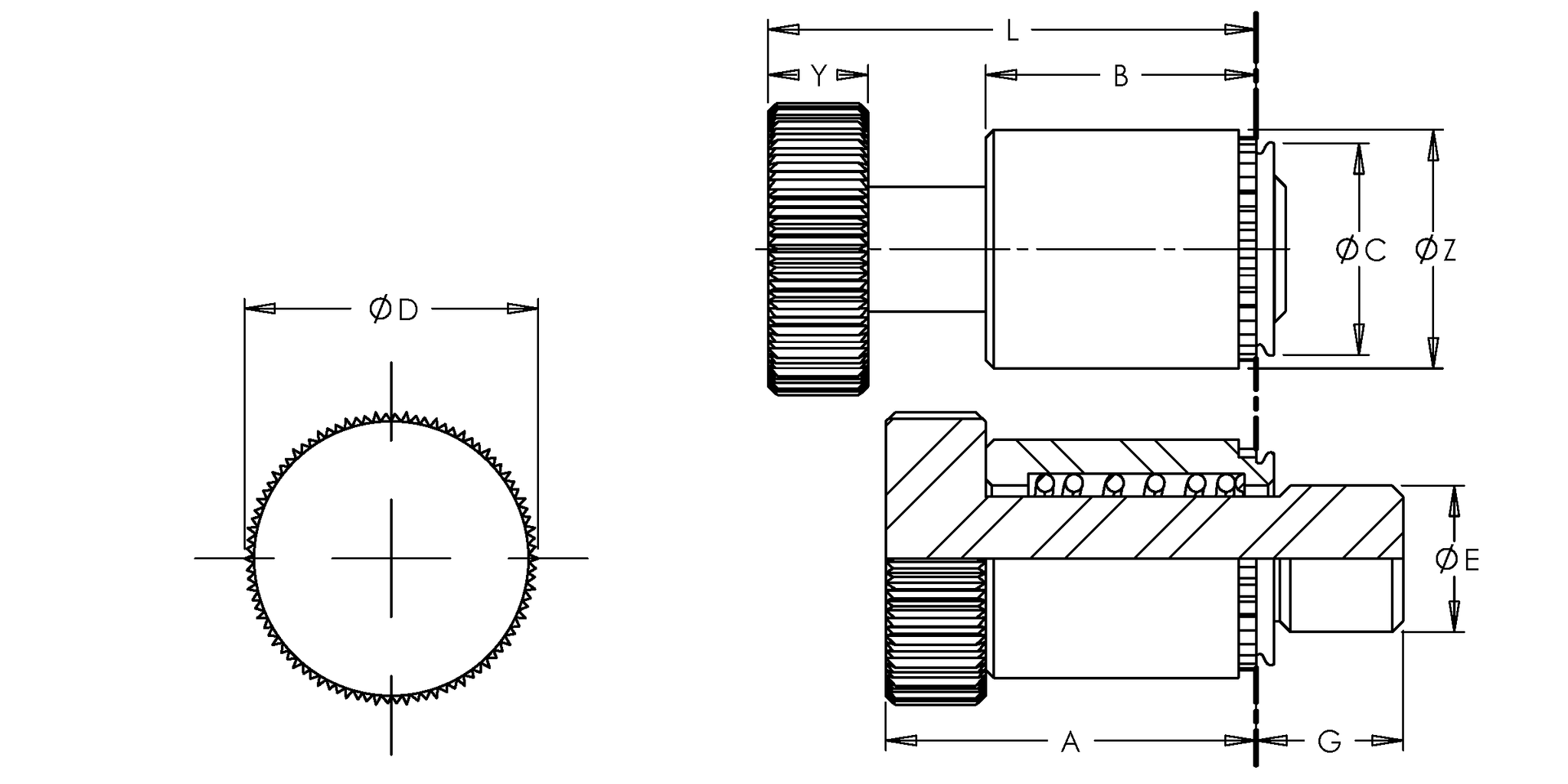

Dim A: 0.510 ±0.010
Dim B: 0.350 ±0.005
Dim C Max.: 0.327
Dim D: 0.500 ±0.010
Dim E: 0.250 +0.000 -0.005
Dim G: 0.310 ±0.010
Dim L Nom.: 0.78
Dim Y: 0.170 ±0.010
Dim Z: 0.406 ±0.010
CL to Edge Distance: 0.34
CRS Installation Force: 4000 lbs
CRS Push Out: 500 lbs
5052 H34 Aluminum Installation Force: 3000 lbs
5052 H34 Aluminum Push Out: 400 lbs
