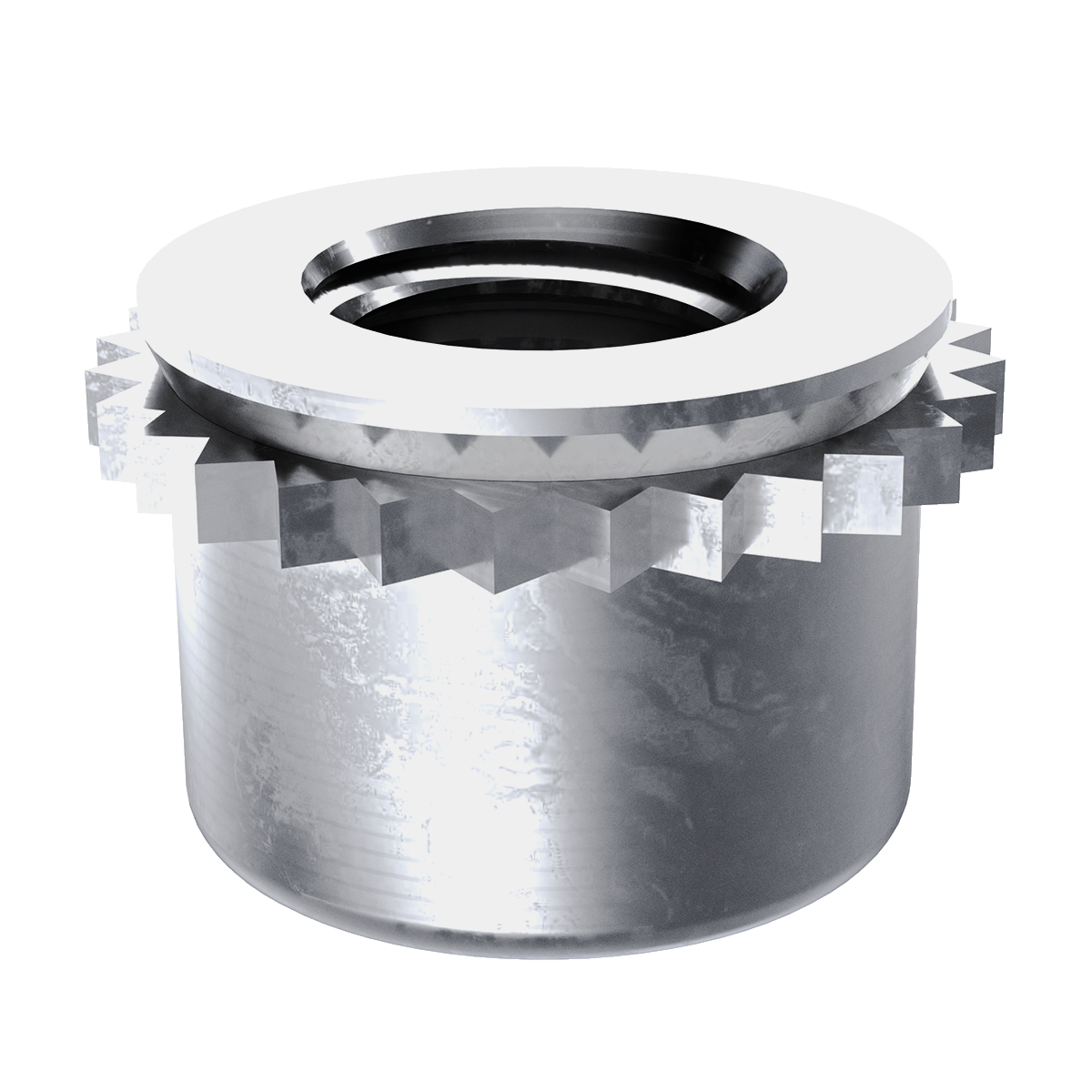

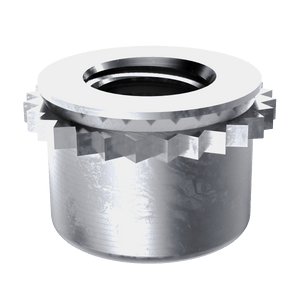

Self-Clinching Nut, Top Collar Lock Self-Clinching Nut, 300 Series Stainless Steel, Passivated, Metric, M5x0.8, 100 Pack

Specifications :

• MFG Part Number : CPLCM5
• Product Group: CPLC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 8.00 +0.08 -0.00
• Sheet Thickness: 1.000-1.780

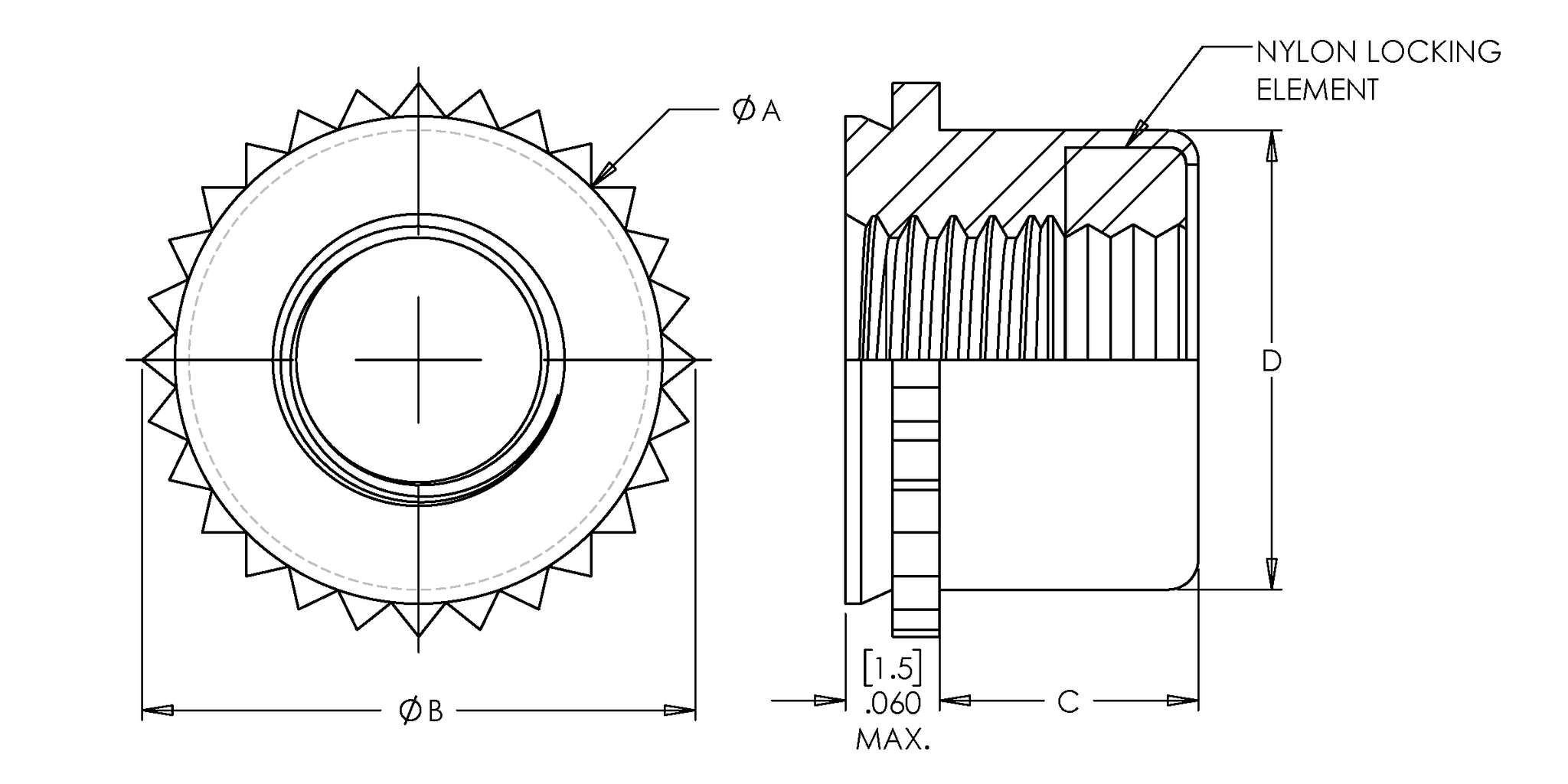

• Dim A Max.: 7.98
• Dim B Max.: 9
• Dim C Max.: 4.45
• Dim D Max.: 7.52
• CL to Edge Distance: 6.35
• 1.500mm CRS Installation Force: 13.34 kN
• 1.200mm CRS Installation Force: 13.34 kN
• 1.200mm CRS Push Out: 1380 N
• 1.200mm CRS Torque Out: 7.90 N-m
• 1.500mm 5052 H34 Aluminum Intallation Force: 8.90 kN
• 1.500mm 5052 H34 Aluminum Push Out: 1330 N
• 1.500mm 5052 H34 Aluminum Torque Out: 7.90 N-m
