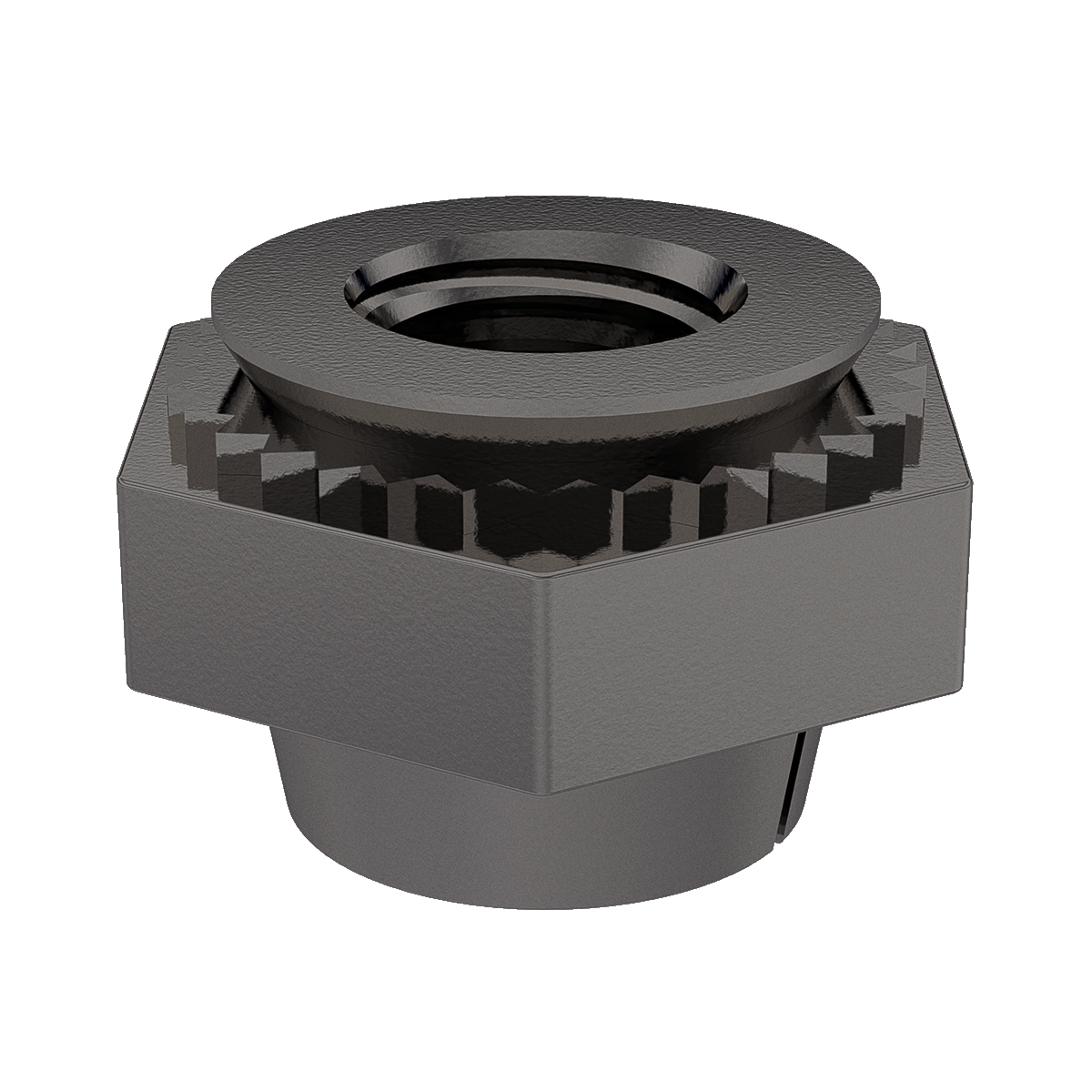

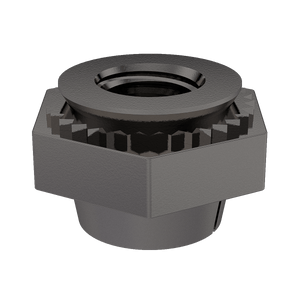

Self-Clinching Nut, Locking Thread, 7075 Aluminum, Metric, M3x0.5 x2, 100 Pack

Specifications :

• MFG Part Number : CRTAM3-2
• Product Group: CRTA
• Material: Aluminum; 7076-T6
• Finish: None
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.75 +0.08 -0.00
• Sheet Thickness: 1.4

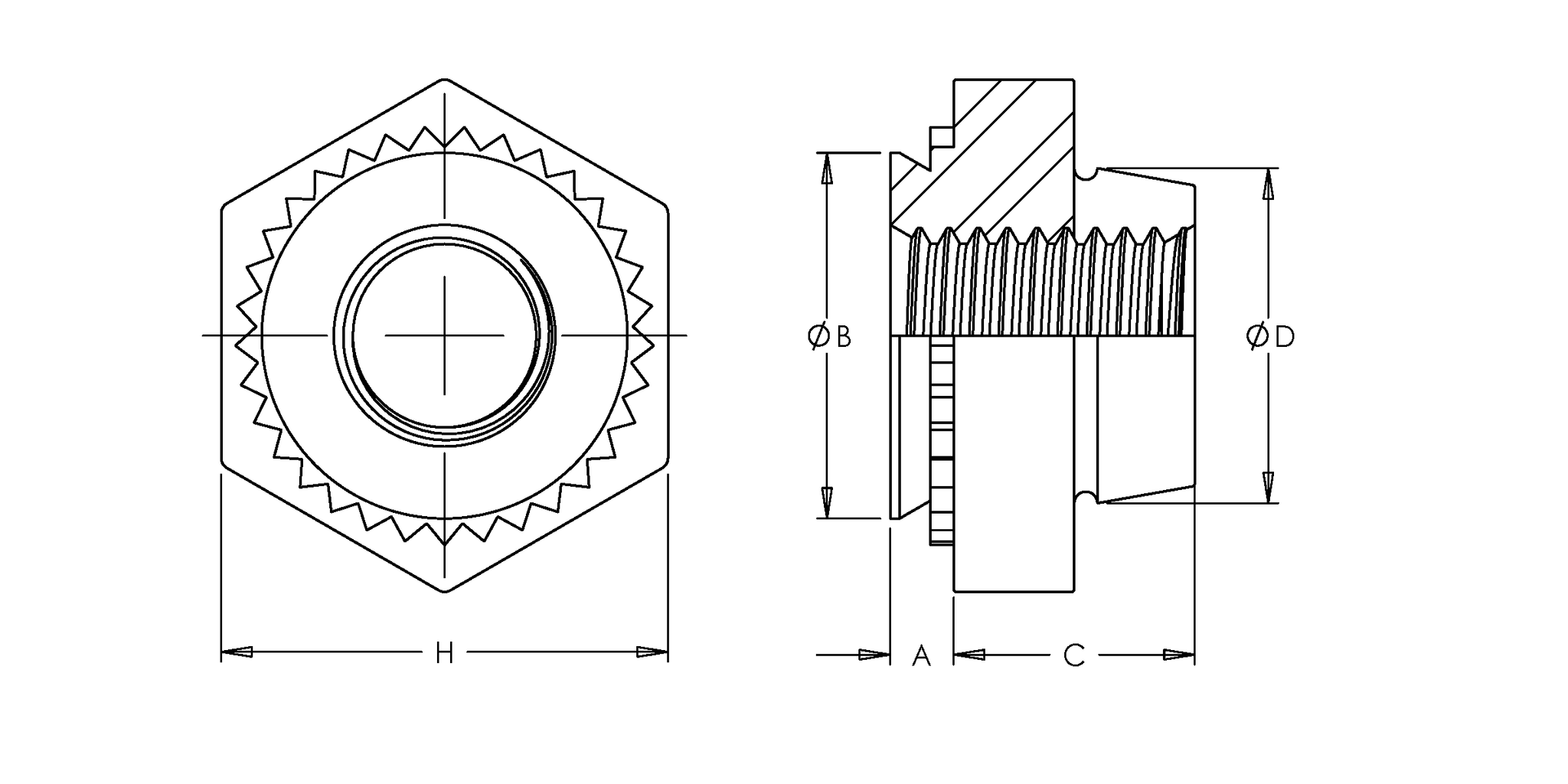

• Dim A Max.: 1.38
• Dim B Max.: 4.73
• Dim C: 3.43 ±0.25
• Dim D Max.: 4.85
• Dim H Nom.: 6.35
• CL to Edge Distance: 4.0
• CRS Installation Force: 13.3 kN
• CRS Push Out: 1112 N
• CRS Torque Out: 4.5 N-m
• 5052 H34 Aluminum Installation Force: 8.9 kN
• 5052 H34 Aluminum Push Out: 890 N
• 5052 H34 Aluminum Torque Out: 4.0 N-m
