Broaching Standoff, 300 Series Stainless Steel, Passivated, Metric, M3x0.5 x10, 100 Pack

Broaching Standoff, 300 Series Stainless Steel, Passivated, Metric, M3x0.5 x10, 100 Pack

Broaching Standoff, 300 Series Stainless Steel, Passivated, Metric, M3x0.5 x10, 100 Pack

Broaching Standoff, 300 Series Stainless Steel, Passivated, Metric, M3x0.5 x10, 100 Pack

Broaching Standoff, 300 Series Stainless Steel, Passivated, Metric, M3x0.5 x10, 100 Pack

Captive Fastener

559-KFSEM310

Specifications :

MFG Part Number : CKFSEM3-10
Product Group: CKFSE
Material: Stainless Steel; 300 Series
Finish: Passivated
Thread Type: Metric
Thread Size: M3x0.5
Thread Code: M3
Hole Diameter: 4.22 +0.08 -0.00
Sheet Thickness: 1.53

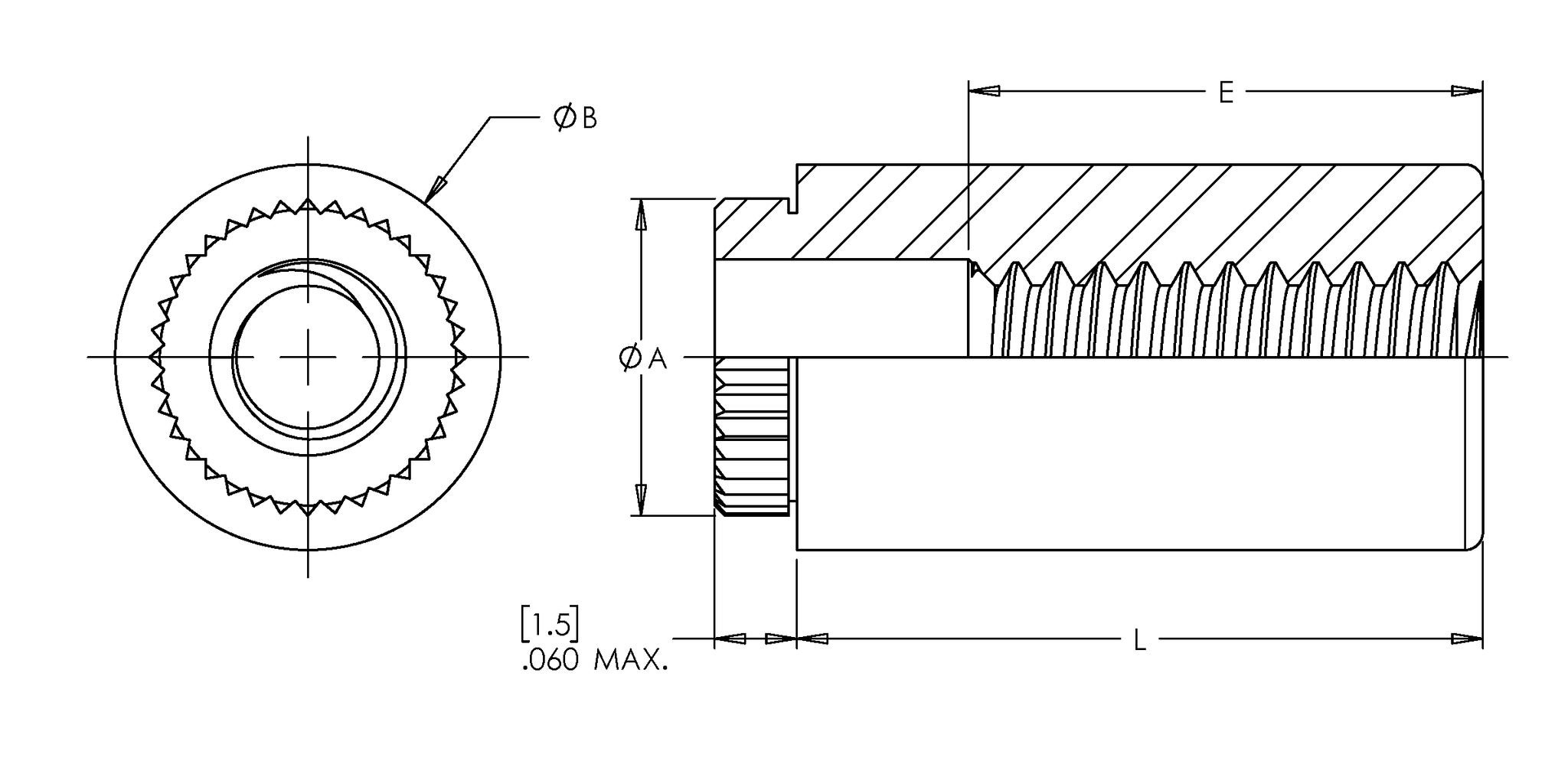

Dim A: 4.68 ±0.08
Dim B: 5.56 ±0.13
Dim E: FULL
Dim L: 10.00 ±0.13
CL to Edge Distance: 4.4
.060in Fiberglass Installation Force: 2.2 kN
.060in Fiberglass Push Out: 290 N
.060in Fiberglass Torque Out: 1.7 N-m
