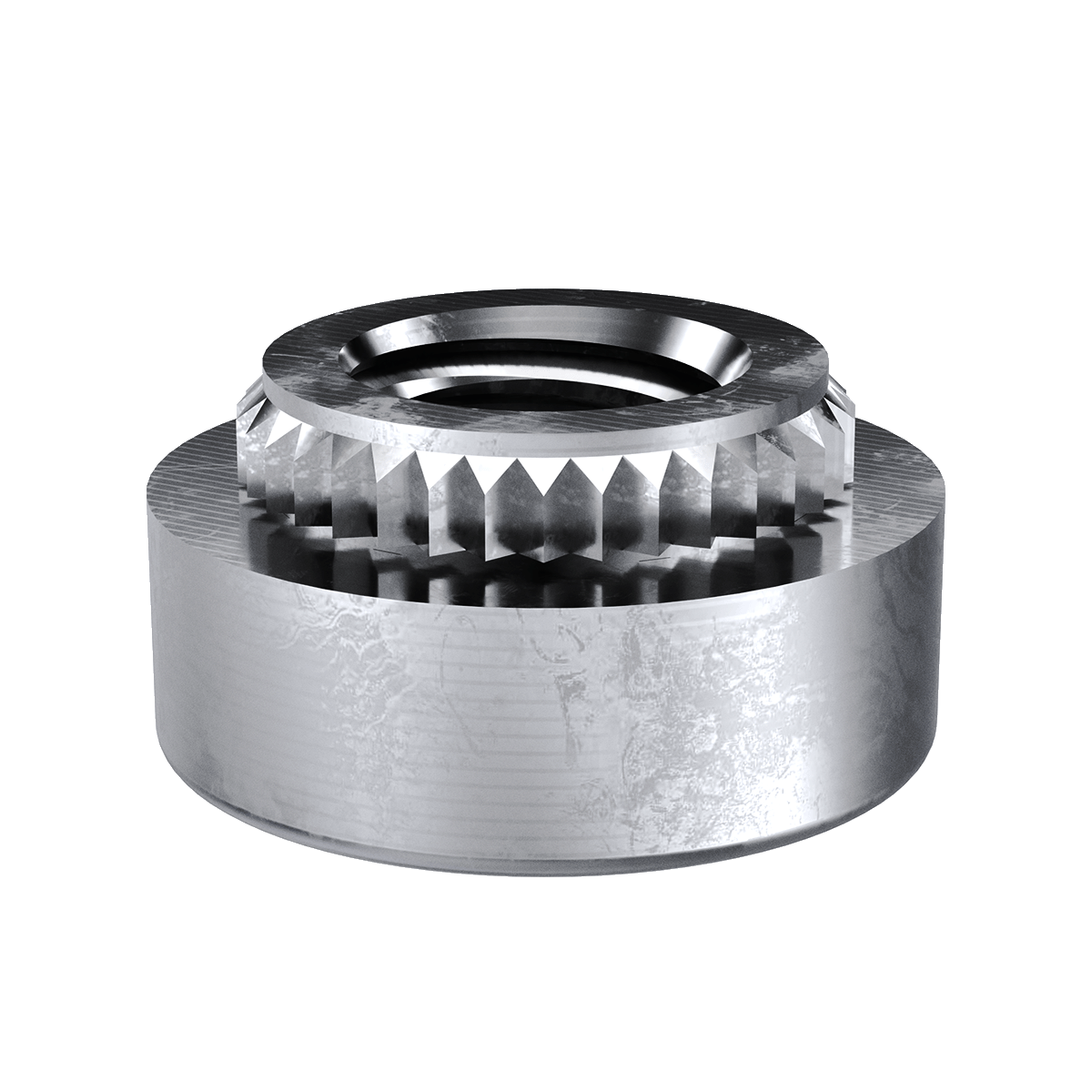

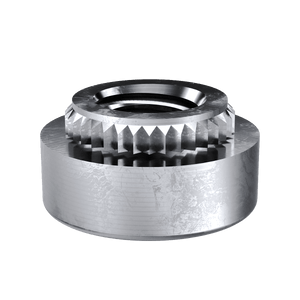

Broaching Nut, 300 Series Stainless Steel, Passivated, Metric, M5x0.8, 100 Pack

Specifications :

• MFG Part Number : CKFS2M5
• Product Group: CKFS2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 6.9 +0.08 -0.00
• Sheet Thickness: 1.53

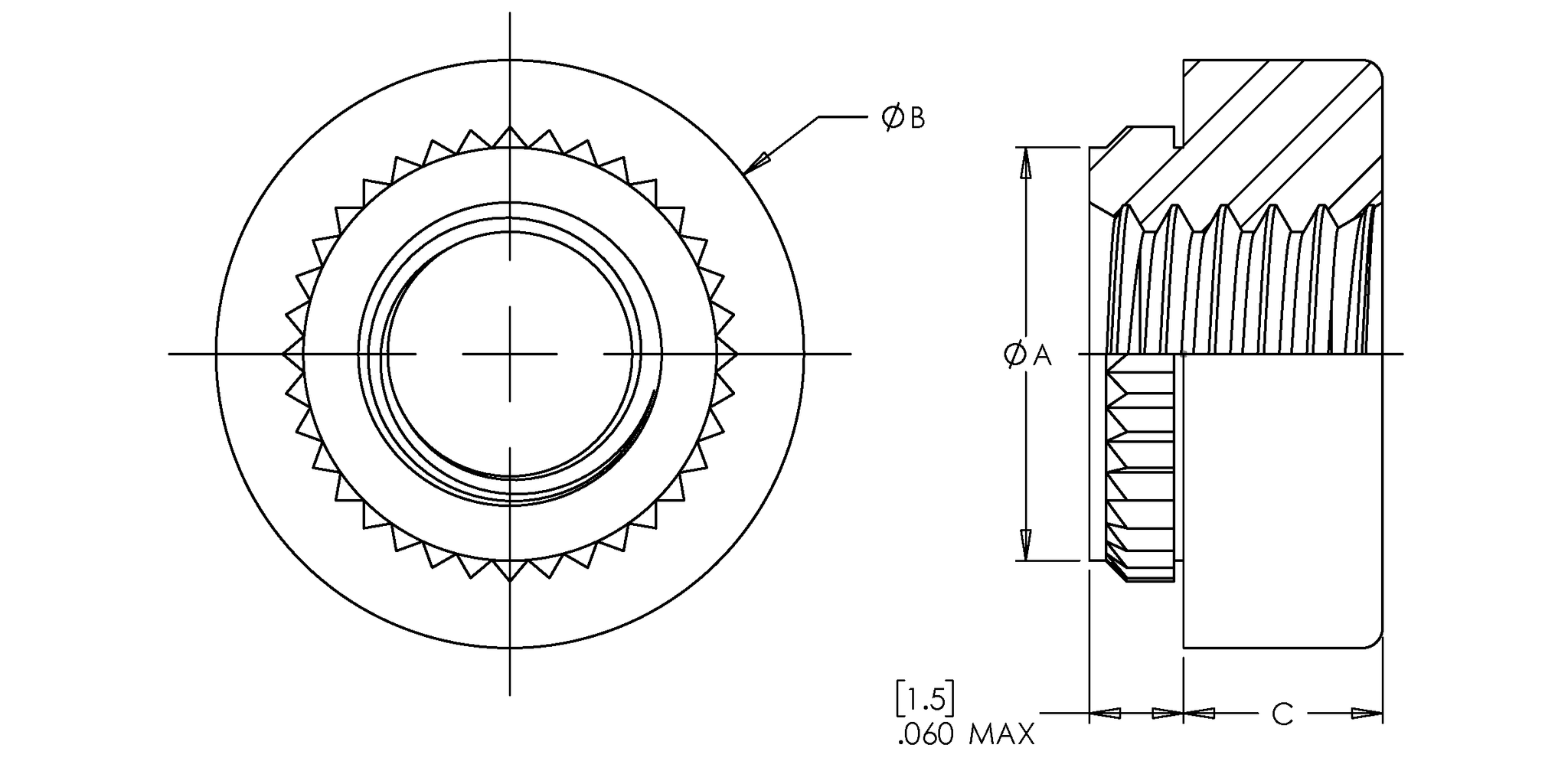

• Dim A: 7.37 ±0.08
• Dim B: 9.53 ±0.13
• Dim C: 3.00 ±0.13
• CL to Edge Distance: 7.1
• .060in Fiberglass Installation Force: 2.90 kN
• .060in Fiberglass Push Out: 440 N
• .060in Fiberglass Torque Out: 4.50 N-m
