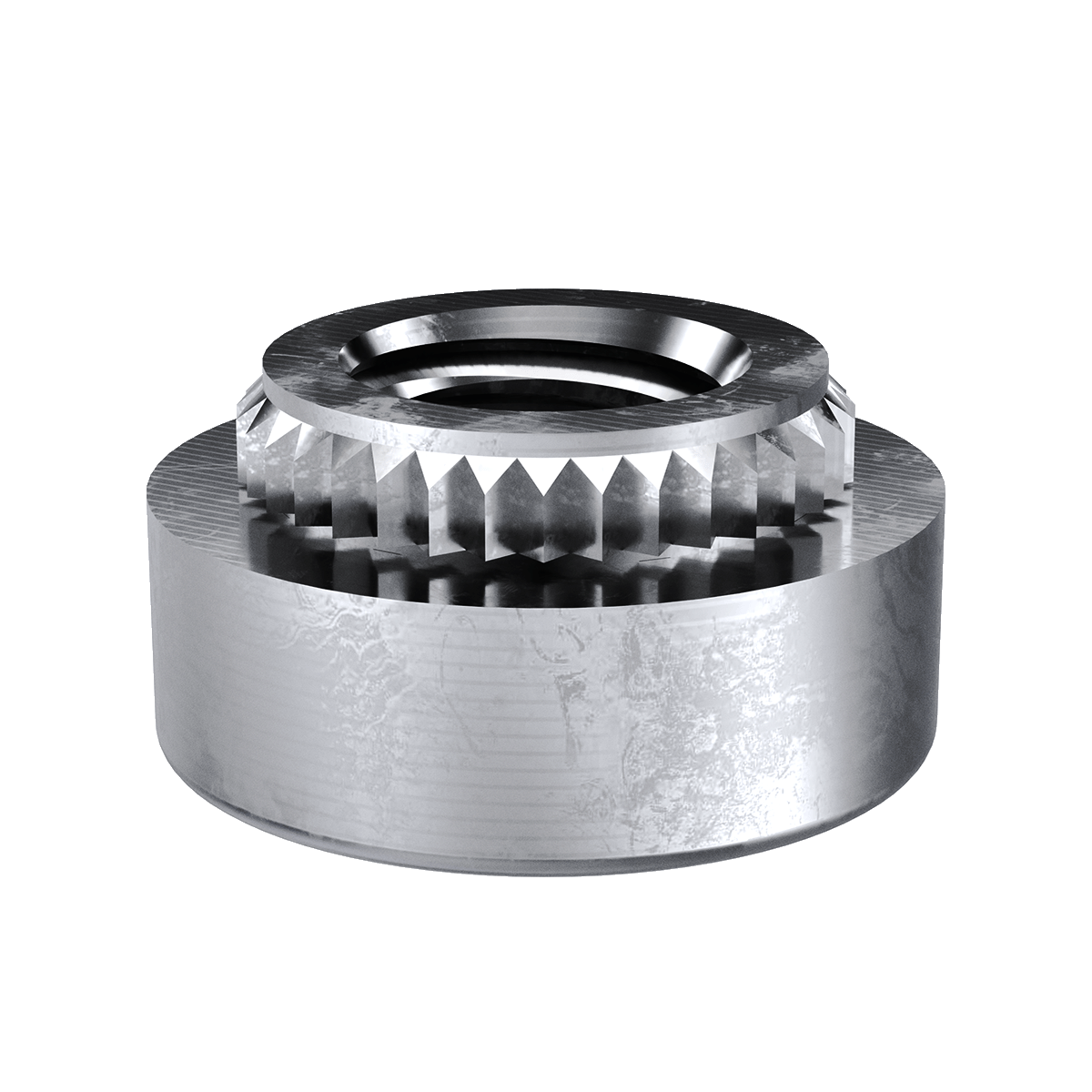

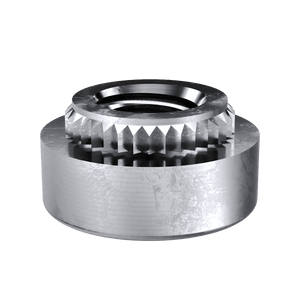

Broaching Nut, 300 Series Stainless Steel, Passivated, 2-56, 100 Pack

Specifications :

• MFG Part Number : CKFS2256
• Product Group: CKFS2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 2-56 UNC
• Thread Code: 256
• Hole Diameter: 0.147 +0.003 -0.000
• Sheet Thickness: 0.06

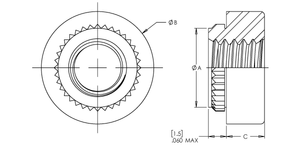

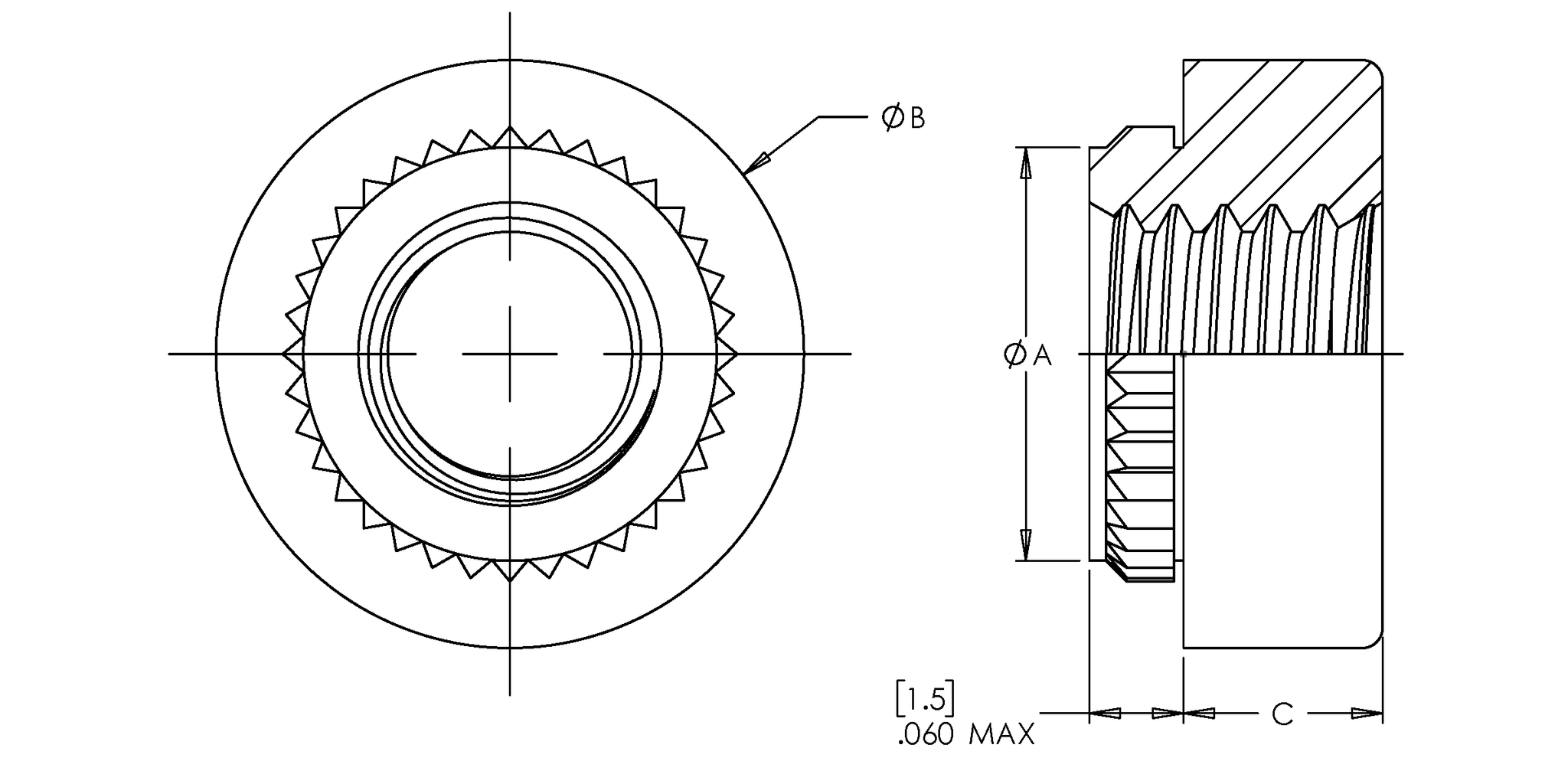

• Dim A: 0.165 ±0.003
• Dim B: 0.219 ±0.005
• Dim C: 0.065 ±0.005
• CL to Edge Distance: 0.16
• .060in Fiberglass Installation Force: 400 lbs.
• .060in Fiberglass Push Out: 60 lbs.
• .060in Fiberglass Torque Out: 6 in-lbs.
