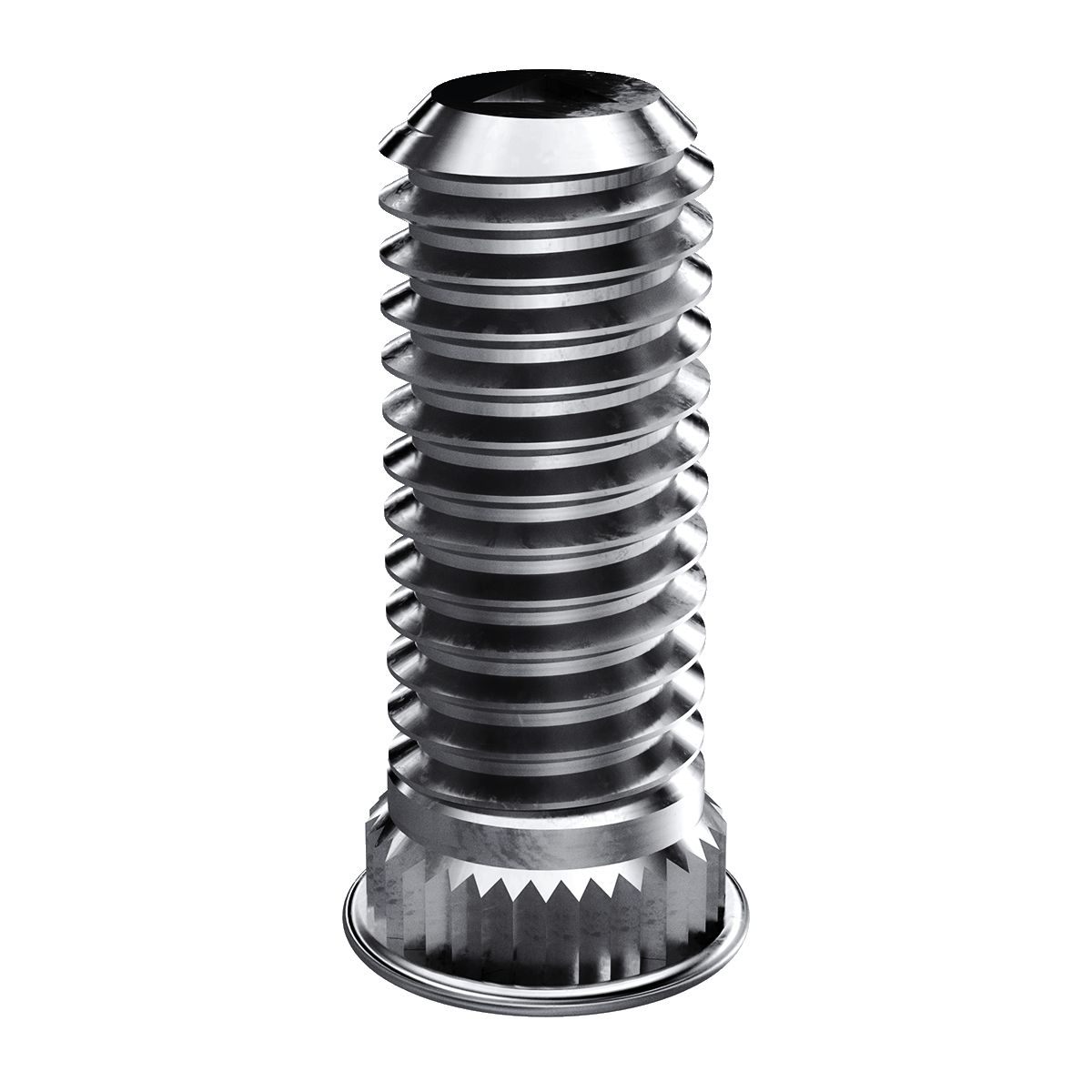

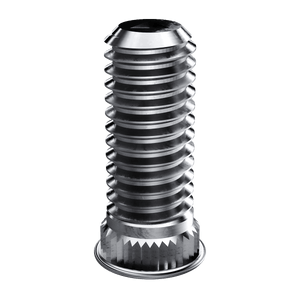

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, Metric, M3x0.5 x 12, 100 Pack

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, Metric, M3x0.5 x 12, 100 Pack

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, Metric, M3x0.5 x 12, 100 Pack

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, Metric, M3x0.5 x 12, 100 Pack

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, Metric, M3x0.5 x 12, 100 Pack

Captive Fastener

559-KFHM312

$99,999.00 CAD

Specifications :

MFG Part Number : CKFHM3-12
Product Group: CKFH
Material: Phosphor Bronze; CDA-510
Finish: Electro Tin
Thread Type: Metric
Thread Size: M3x0.5
Thread Code: M3
Hole Diameter: 3 +0.08 -0.00
Sheet Thickness: 1.53

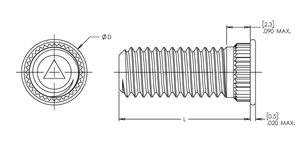

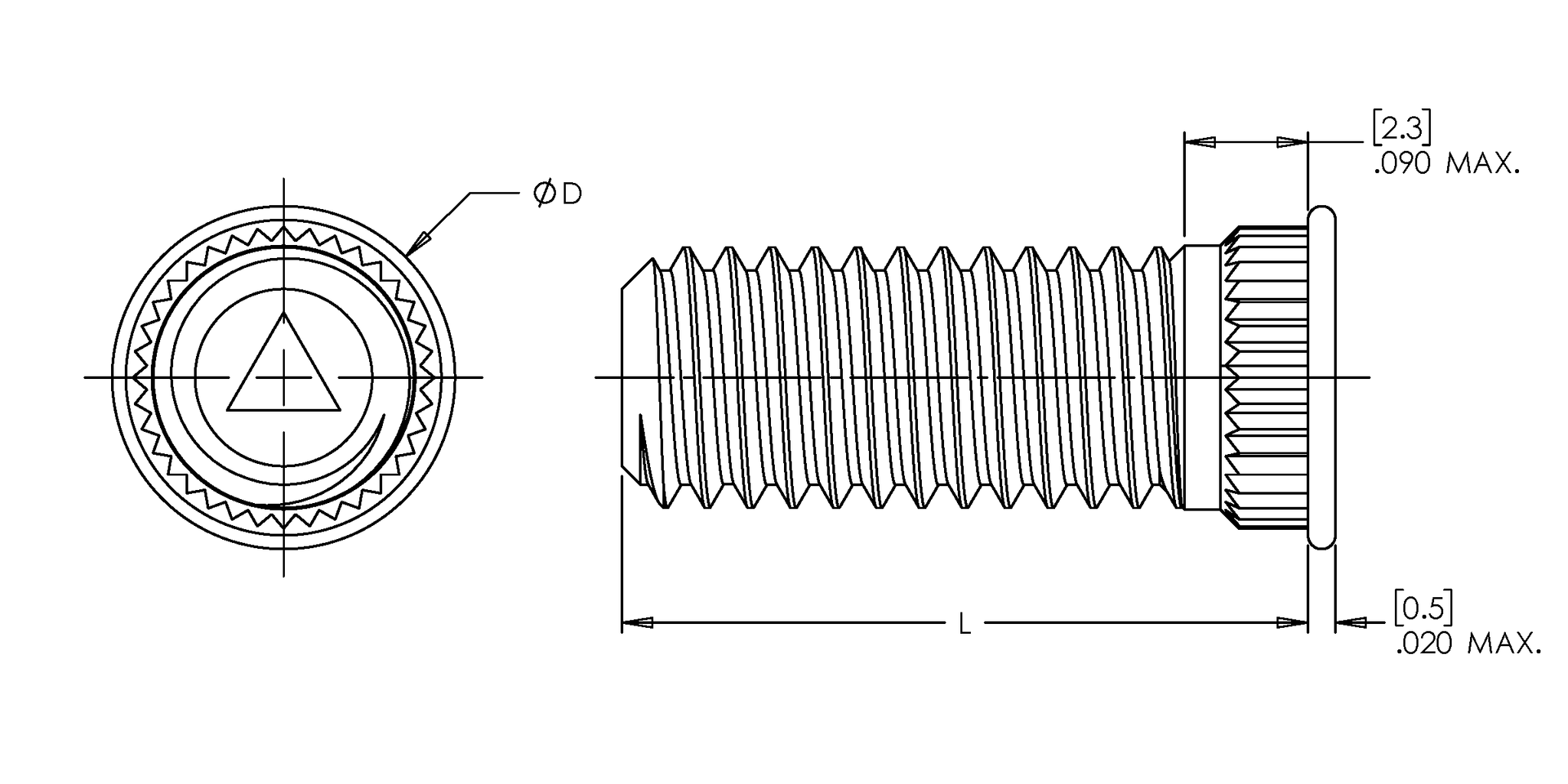

Dim D: 4.58 ±0.25
Dim L: 12.00 ±0.25
Anvil Hole Dia: 3.10 +0.08
CL to Edge Distance: 3.8
Max Nut Tightening Torque: 0.45 N-m
Max. Hole in attached parts: 3.7
.060in Fiberglass Installation Force: 1.80 kN
.060in Fiberglass Push Out: 285 N
.060in Fiberglass Torque Out: 0.79 N-m
