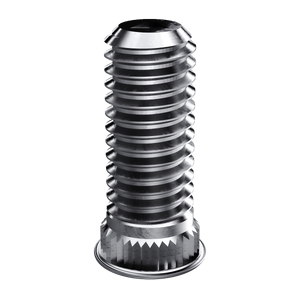

Broaching Stud, Phosphor Bronze CDA-510, Electro Tin, 8-32 x 0.750, 100 Pack

Specifications :

• MFG Part Number : CKFH832-12
• Product Group: CKFH
• Material: Phosphor Bronze; CDA-510
• Finish: Electro Tin
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.166 +0.003 -0.000
• Sheet Thickness: 0.06
• Dim D: 0.225 ±0.010
• Dim L: 0.750 ±0.010
• Anvil Hole Dia: 0.166 +0.003
• CL to Edge Distance: 0.2
• Max Nut Tightening Torque: 15 in-lbs
• Max. Hole in attached parts: 0.195
• .060in Fiberglass Installation Force: 400 lbs.
• .060in Fiberglass Push Out: 80 lbs.
• .060in Fiberglass Torque Out: 16 in-lbs.
