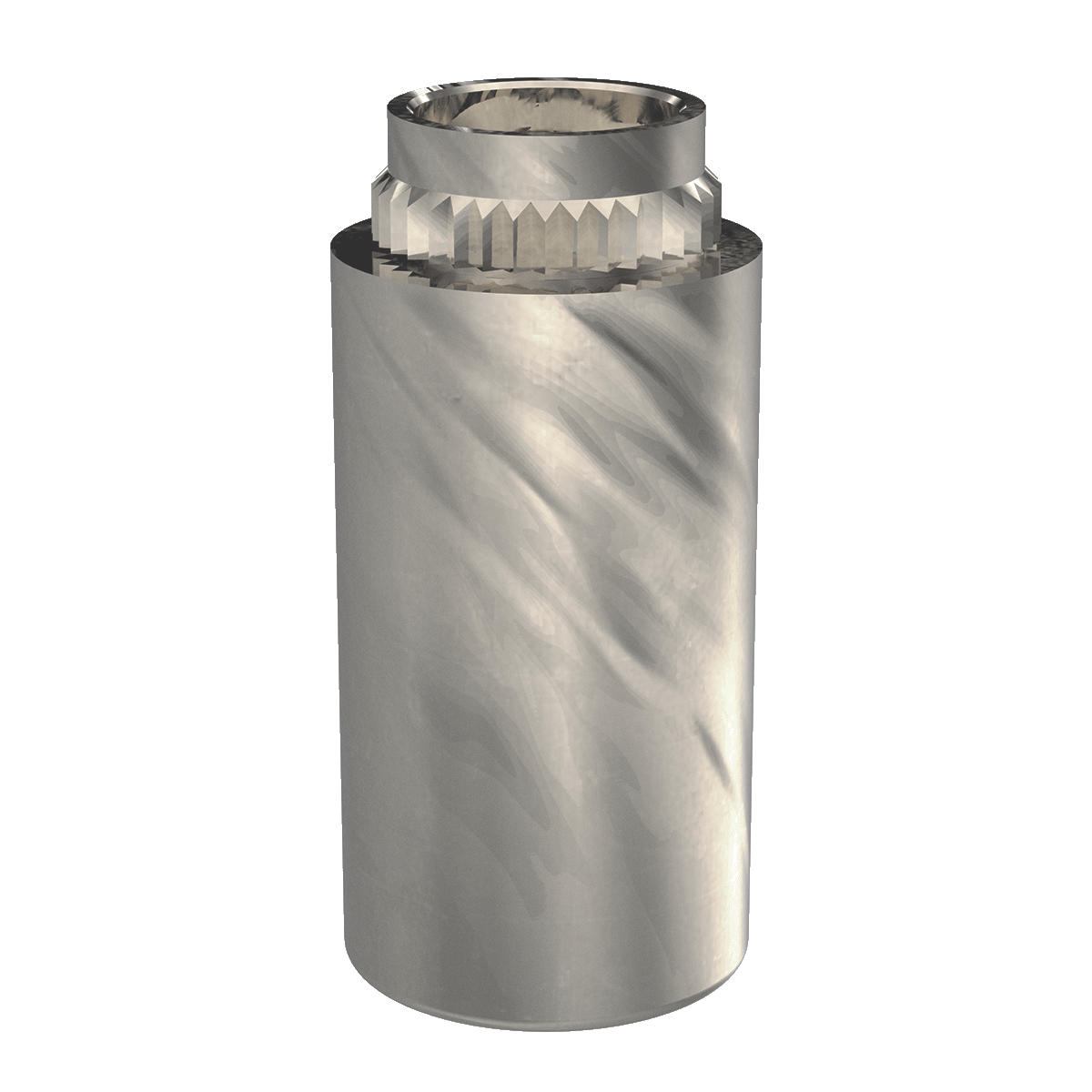

Broaching Standoff, Flare Mounted, Brass CDA-360, Electro Tin, 6-32 x 0.750, 100 Pack

Specifications :

• MFG Part Number : CKFB3632-24
• Product Group: CKFB3
• Material: Brass; CDA-360
• Finish: Electro Tin
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.065

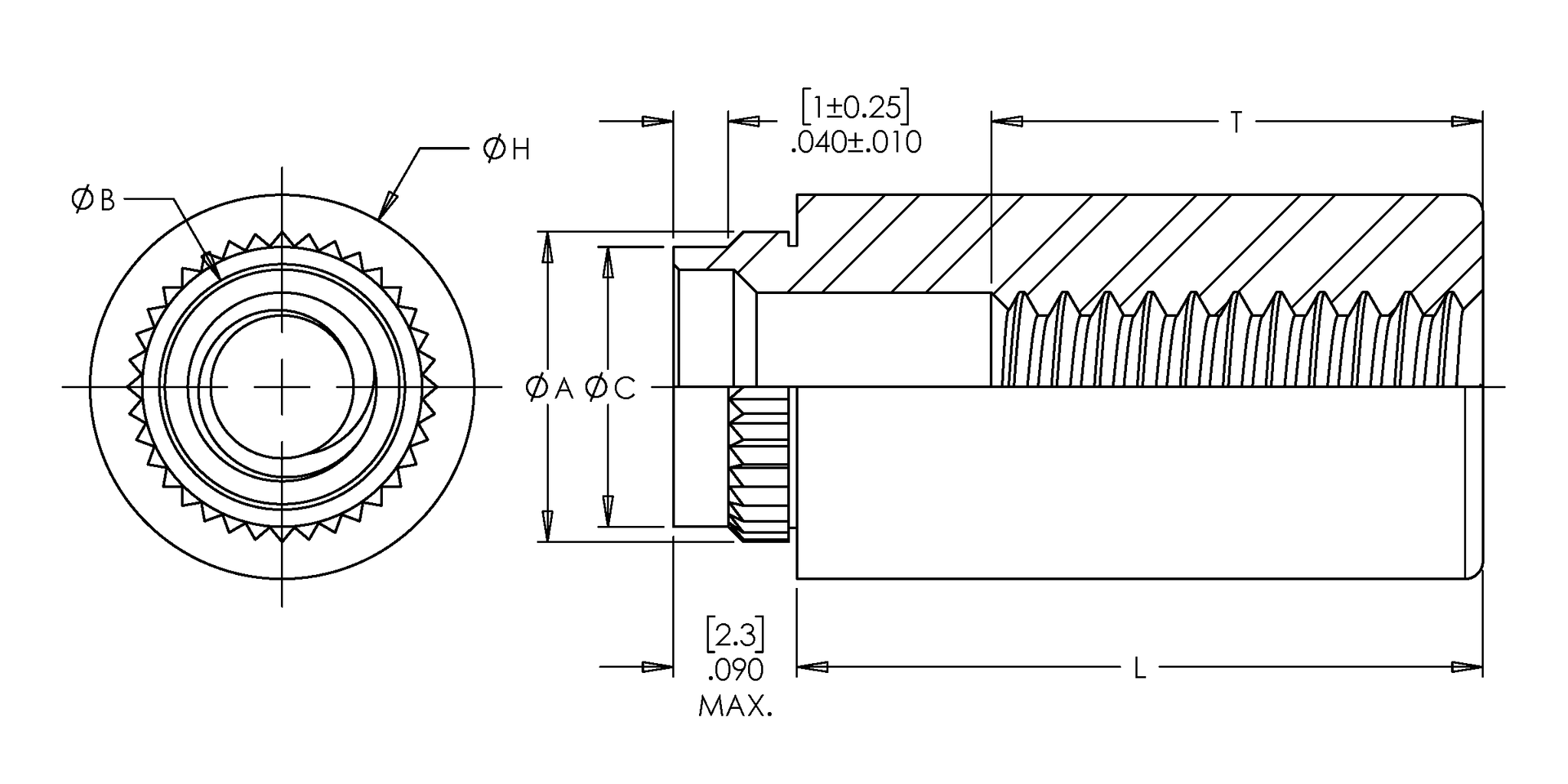

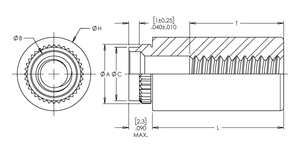

• Dim A: 0.226 ±0.003
• Dim B: 0.171 ±0.003
• Dim C Max.: 0.212
• Dim H: 0.280 ±0.005
• Dim L: 0.750 ±0.005
• Dim T: 0.375 ±0.015
• CL to Edge Distance: 0.22
• .060in Fiberglass Installation Force: 1500 lbs.
• .060in Fiberglass Push Out: 170 lbs.
• .060in Fiberglass Torque Out: 28 in-lbs.
