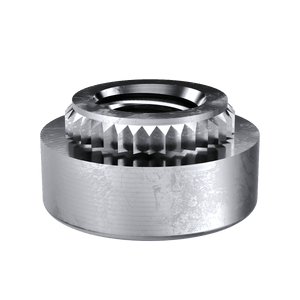

Broaching Nut, Steel, Electro Tin, Metric, M2x0.4, 100 Pack

Broaching Nut, Steel, Electro Tin, Metric, M2x0.4, 100 Pack

Broaching Nut, Steel, Electro Tin, Metric, M2x0.4, 100 Pack

Broaching Nut, Steel, Electro Tin, Metric, M2x0.4, 100 Pack

Broaching Nut, Steel, Electro Tin, Metric, M2x0.4, 100 Pack

Captive Fastener

559-KF2M2

Specifications :

MFG Part Number : CKF2M2
Product Group: CKF2
Material: Steel
Finish: Electro Tin
Thread Type: Metric
Thread Size: M2x0.4
Thread Code: M2
Hole Diameter: 3.73 +0.08 -0.00
Sheet Thickness: 1.53

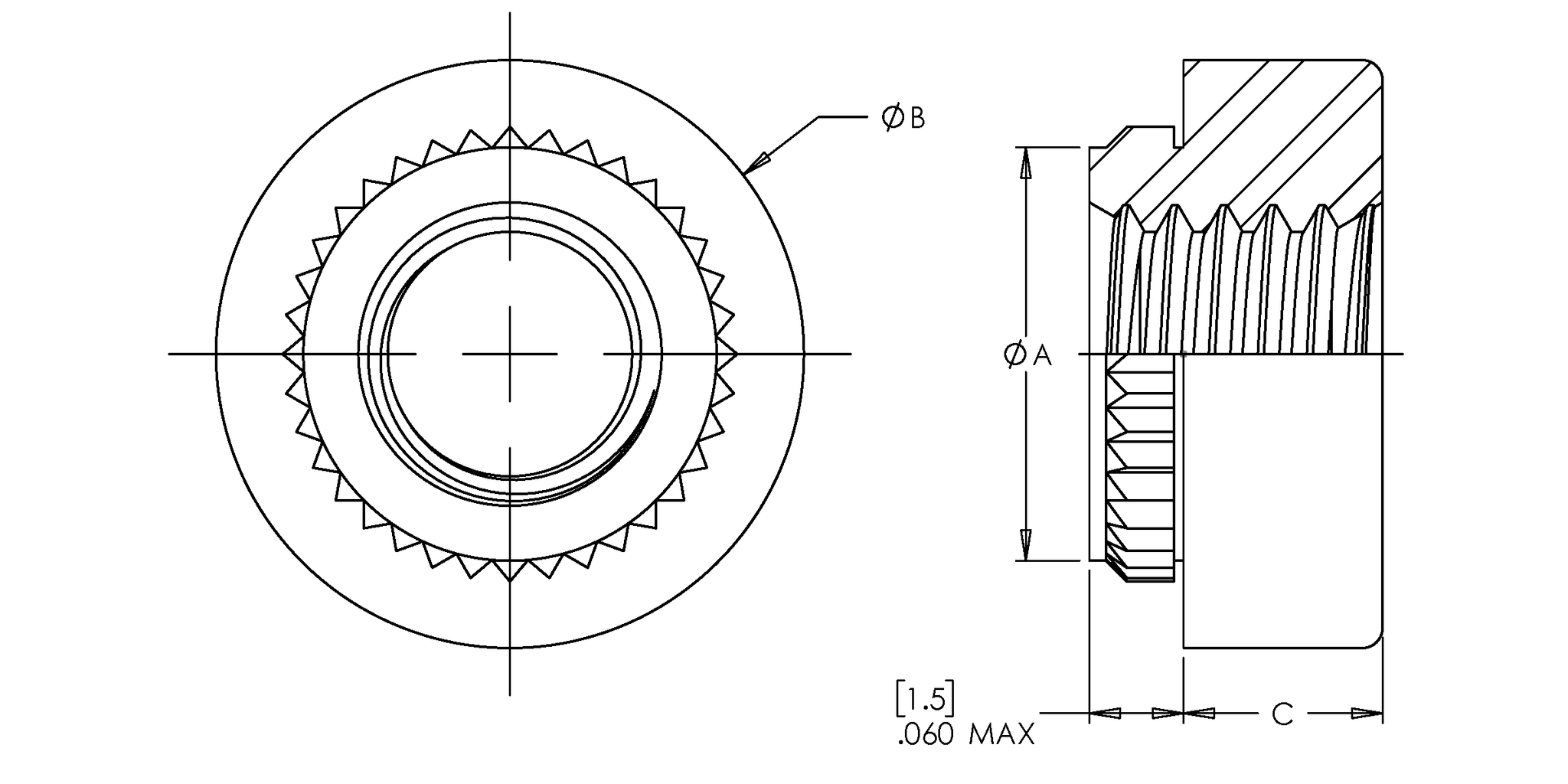

Dim A: 4.19 ±0.08
Dim B: 5.56 ±0.13
Dim C: 1.50 ±0.13
CL to Edge Distance: 4.2
Installation Sheet Thickness: 1.14mm SS
.060in Fiberglass Installation Force: 2.22 kN
.060in Fiberglass Push Out: 270 N
.060in Fiberglass Torque Out: 0.65 N-m
