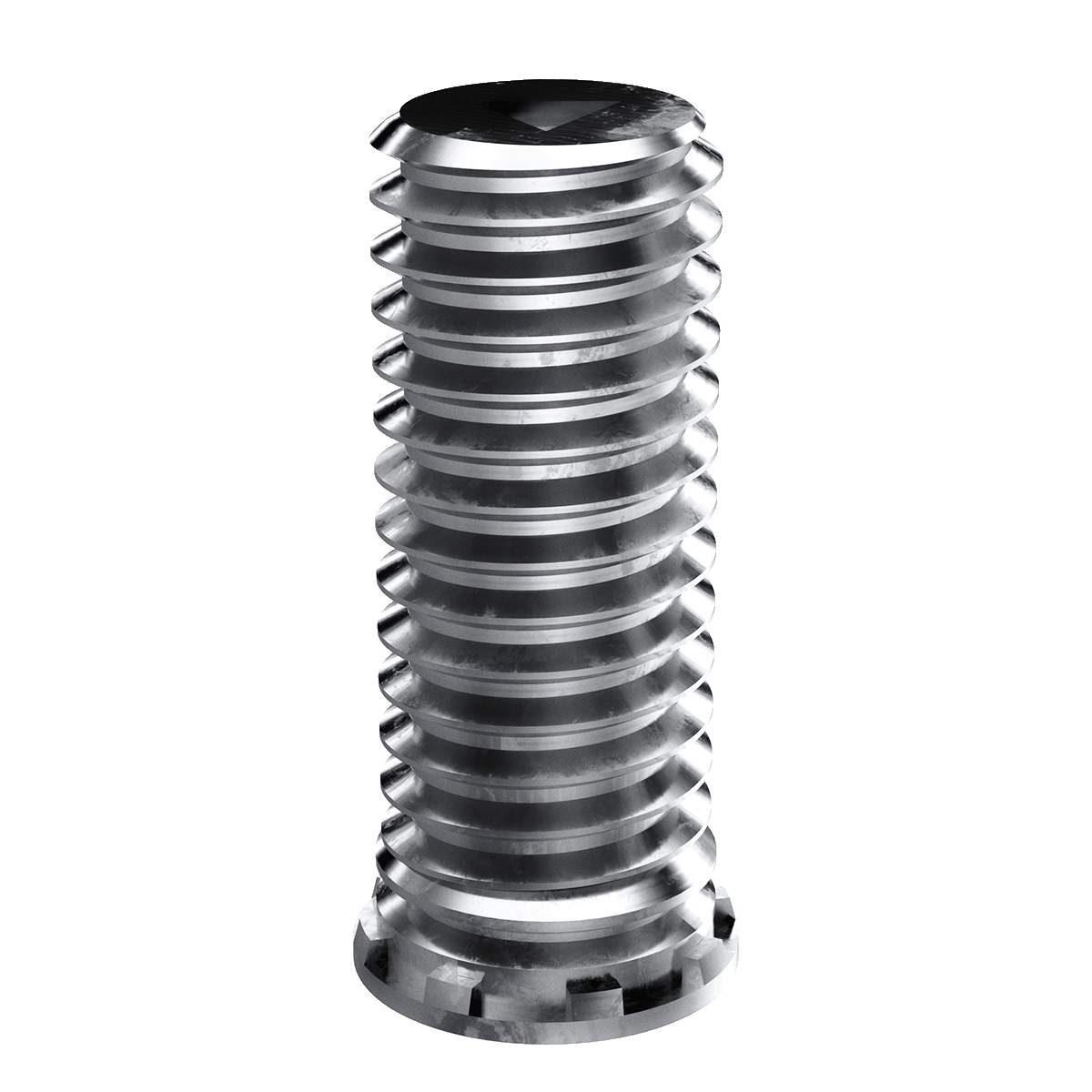

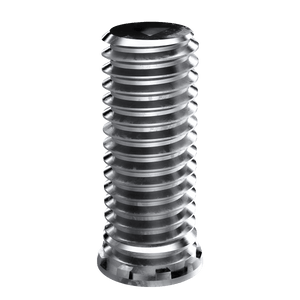

Self-Clinching Stud, Close Edge, 300 Series Stainles Steel, Passivated, Metric, M3x0.5 x 6, 100 Pack

Specifications :

• MFG Part Number : CHESM3-6
• Product Group: CHES
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 3 +0.08 -0.00
• Sheet Thickness: 1
• 1.100mm CRS Sheet Hardness HRB: 54 HRB

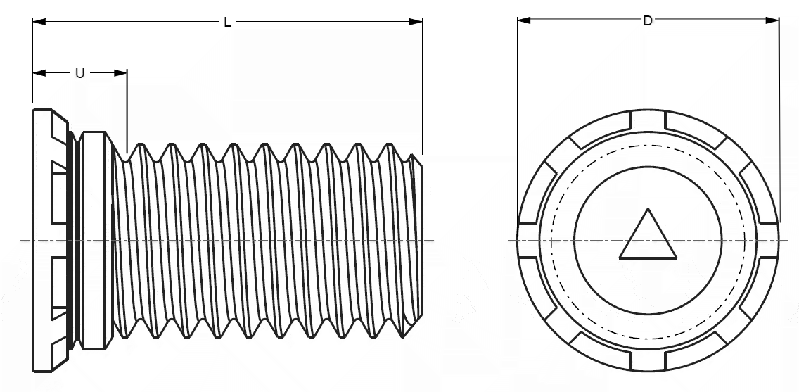

• Dim D: 3.65 ±0.40
• Dim L: 6.0 ±0.4
• Dim U Max.: 2.1
• CL to Edge Distance: 3.3
• 1.100mm CRS Max Nut Tightening Torque: 0.74 N-m
• 1.100mm CRS Installation Force: 5.3 kN
• 1.100mm CRS Push Out: 475 N
• 1.100mm CRS Torque Out: 1.25 N-m
• 1.100mm CRS Pull Thru: 2500 N
• 1.200mm Aluminum Sheet Hardness HRB: 33 HRB
• 1.200mm Aluminum Installation Force: 4.4 kN
• 1.200mm Aluminum Pushout: 285 N
• 1.200mm Aluminum Torque Out: 0.65 N-m
• 1.200mm Aluminum Pull Thru: 1300 N
• 1.2mm 5052-H34 Aluminum Rec Tighten Torque: 0.46 N-m
