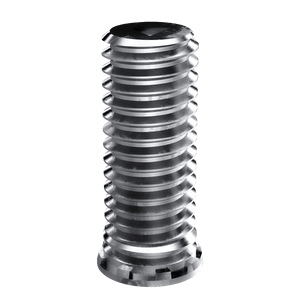

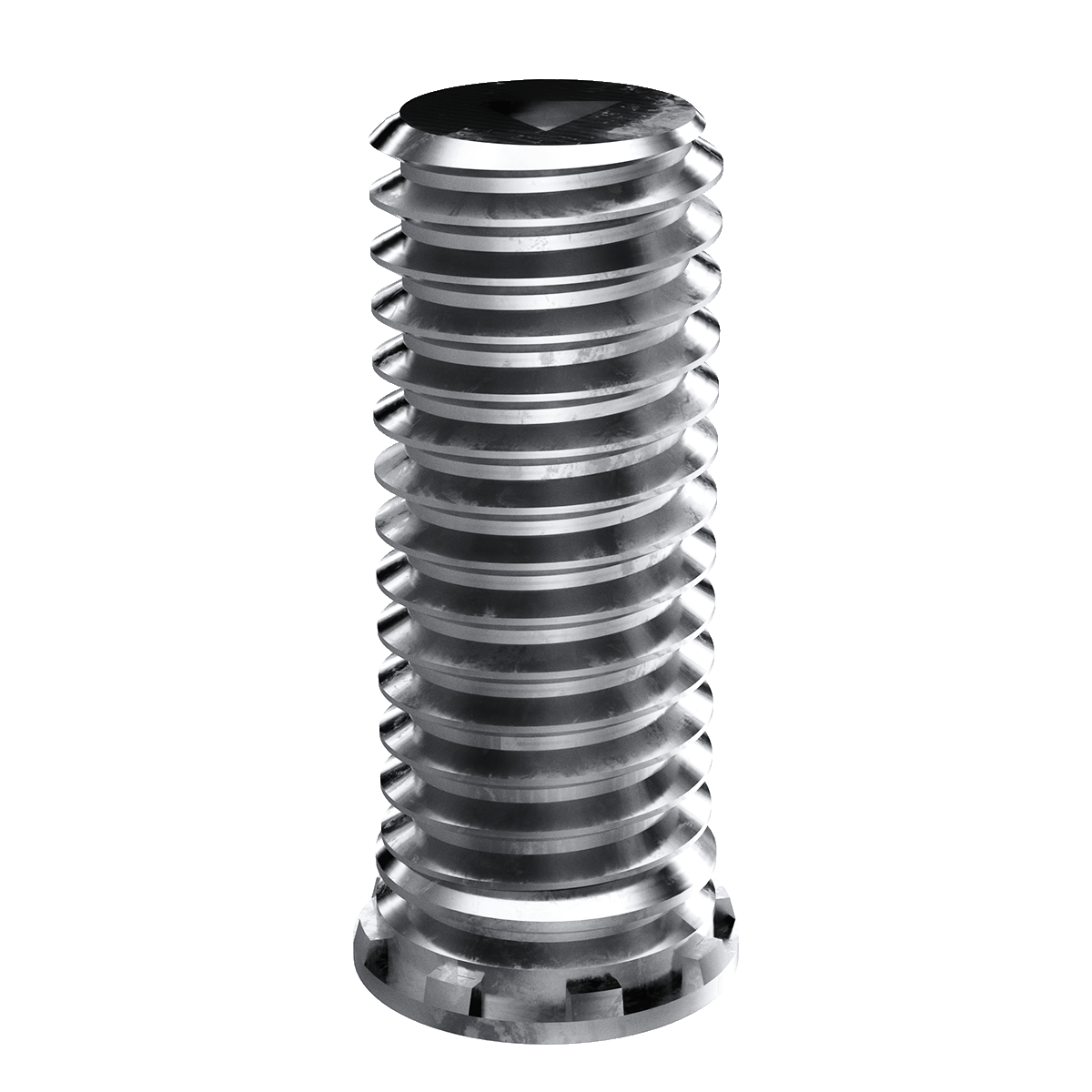

Self-Clinching Stud, Close Edge, 300 Series Stainles Steel, Passivated, 4-40 x 0.625, 100 Pack

Specifications :

• MFG Part Number : CHES440-10
• Product Group: CHES
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.111 +0.003 -0.000
• Sheet Thickness: 0.04
• .045in CRS Sheet Hardness HRB: 54 HRB

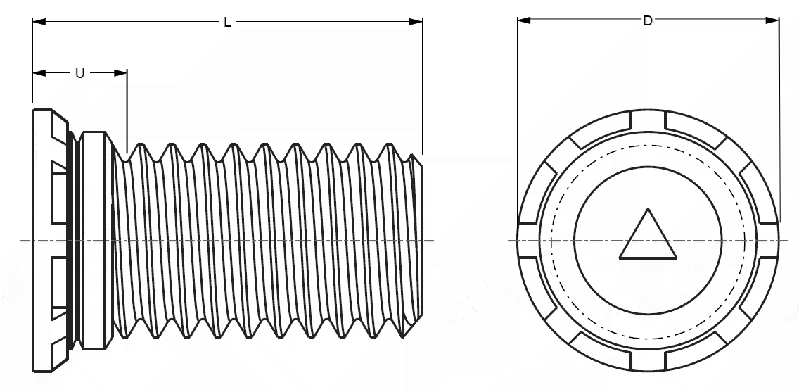

• Dim D: 0.138 ±0.015
• Dim L: 0.625 ±0.015
• Dim U Max.: 0.085
• CL to Edge Distance: 0.124
• .045in CRS Max Rec Nut Tight Torque: 5 in-lbs
• .045in CRS Installation Force: 1200 lbs
• .045in CRS Push Out: 105 lbs
• .045in CRS Torque Out: 11 in-lbs
• .045in CRS Pull Thru: 580 lbs
• .047in Aluminum Sheet Hardness HRB: 33 HRB
• .047in Aluminum Installation Force: 1000 lbs
• .047in Aluminum Push Out: 60 lbs
• .047in Aluminum Torque Out: 5 in-lbs
• .047in Aluminum Pull Thru: 300 lbs
