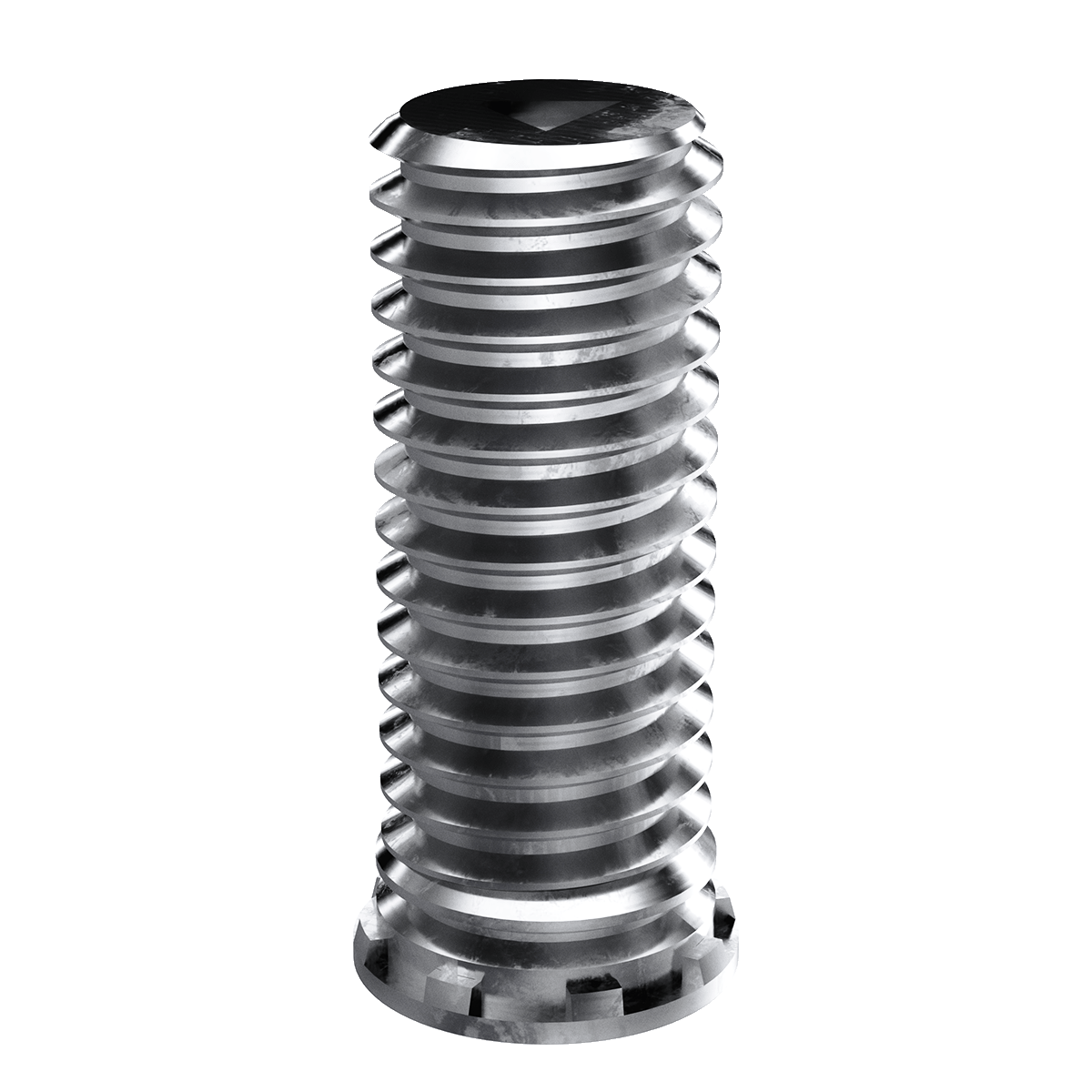

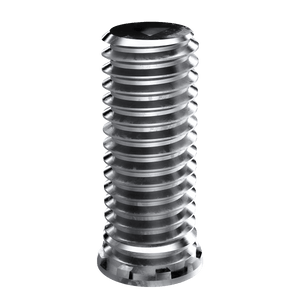

Self-Clinching Stud, Close Edge, Steel, Zinc, Metric, M2.5x0.45 x 18, 100 Pack

Specifications :

• MFG Part Number : CHEM2.5-18
• Product Group: CHE
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M2.5x0.45
• Thread Code: M2.5
• Hole Diameter: 2.5 +0.08 -0.00
• Sheet Thickness: 1
• 1.100mm CRS Sheet Hardness HRB: 54 HRB

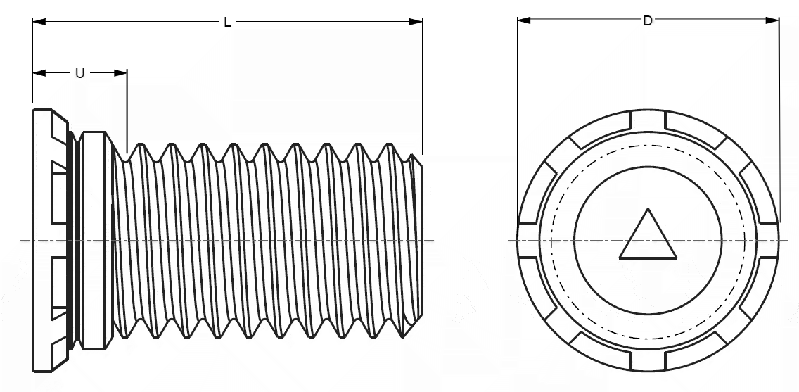

• Dim D: 3.15 ±0.40
• Dim L: 18.0 ±0.4
• Dim U Max.: 2.1
• CL to Edge Distance: 2.8
• 1.100mm CRS Max Nut Tightening Torque: 0.41 N-m
• 1.100mm CRS Installation Force: 5.3 kN
• 1.100mm CRS Push Out: 450 N
• 1.100mm CRS Torque Out: 1.1 N-m
• 1.100mm CRS Pull Thru: 2250 N
• 1.200mm Aluminum Sheet Hardness HRB: 33 HRB
• 1.200mm Aluminum Installation Force: 3.1 kN
• 1.200mm Aluminum Pushout: 285 N
• 1.200mm Aluminum Torque Out: 0.55 N-m
• 1.200mm Aluminum Pull Thru: 1200 N
• 1.2mm 5052-H34 Aluminum Rec Tighten Torque: 0.41 N-m
