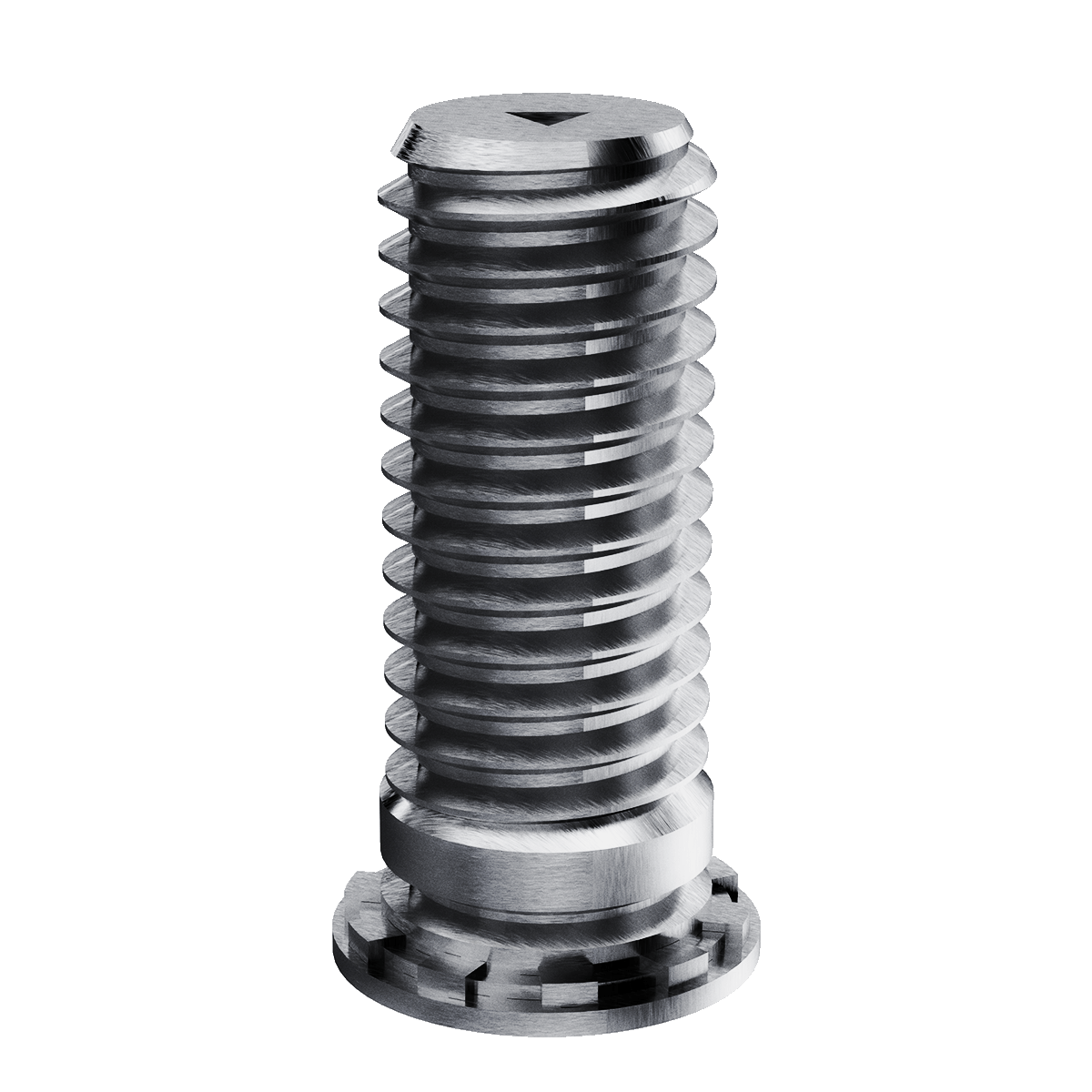

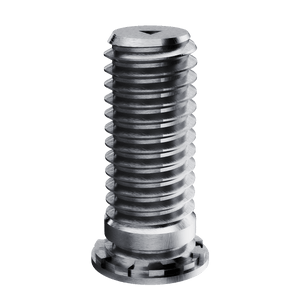

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Specifications :

• MFG Part Number : CHTSM4-35
• Product Group: CHTS
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 4.00 +0.08 -0.00
• Sheet Thickness: 1.0-2.4
• 304SS Sheet Hardness: 86 HRB

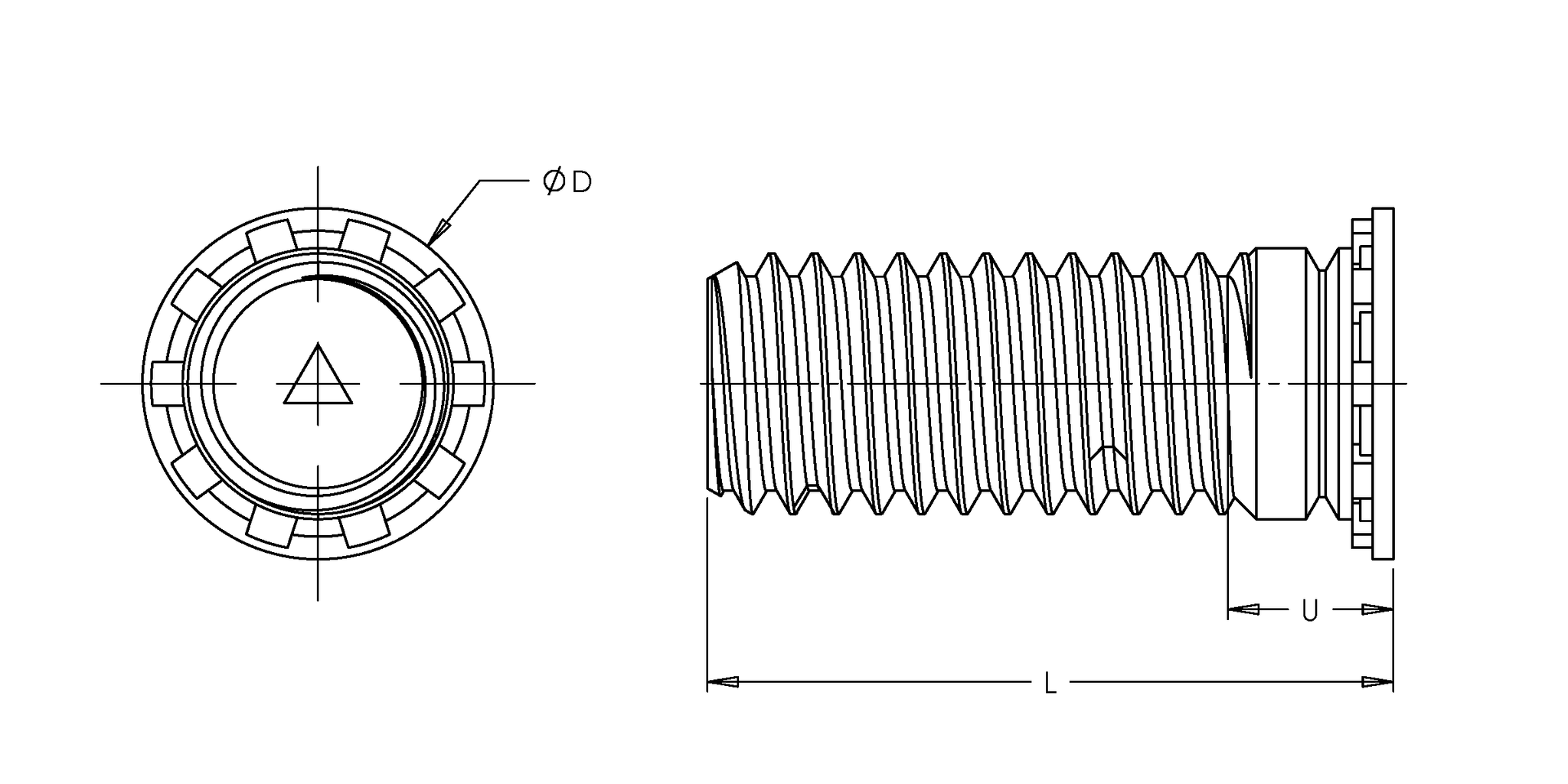

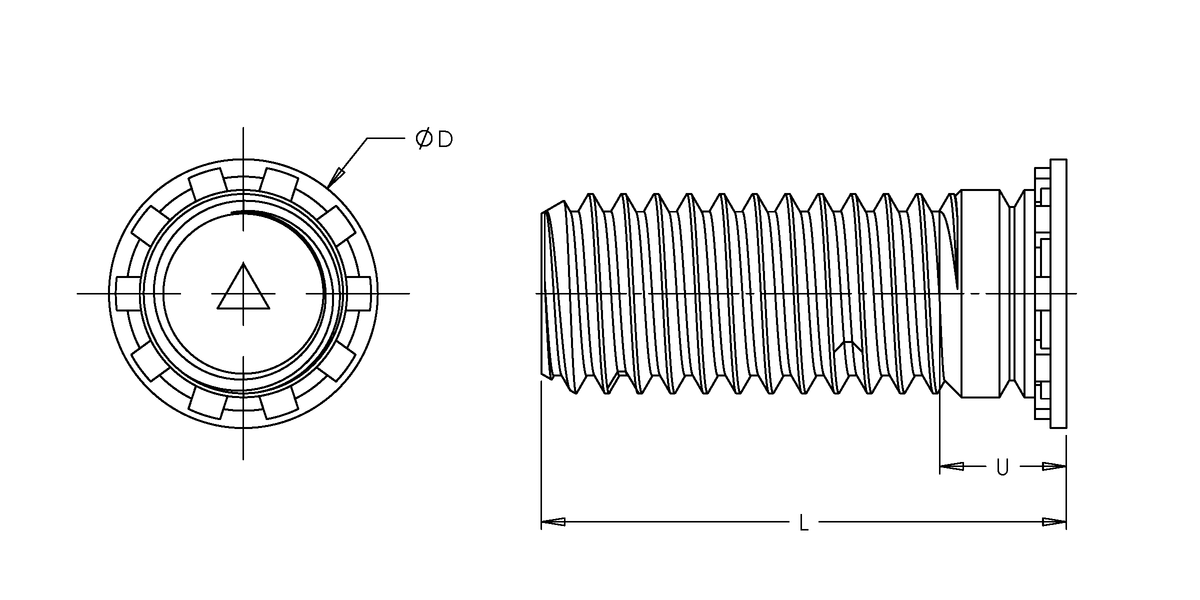

• Dim D: 5.9 ±0.4
• Dim L: 35.0 ±0.4
• Dim U Max.: 2.4
• CL to Edge Distance: 7.2
• 304SS Recommended Tightening Torque: 2.1 N-m
• Installation Sheet Thickness: 0.045 SS
• 304SS Installation Force: 50 kN
• 304SS Push Out: 3210 N
• 304SS Torque Out: 6.5 N-m
• 304SS Pull Through: 8000 N
