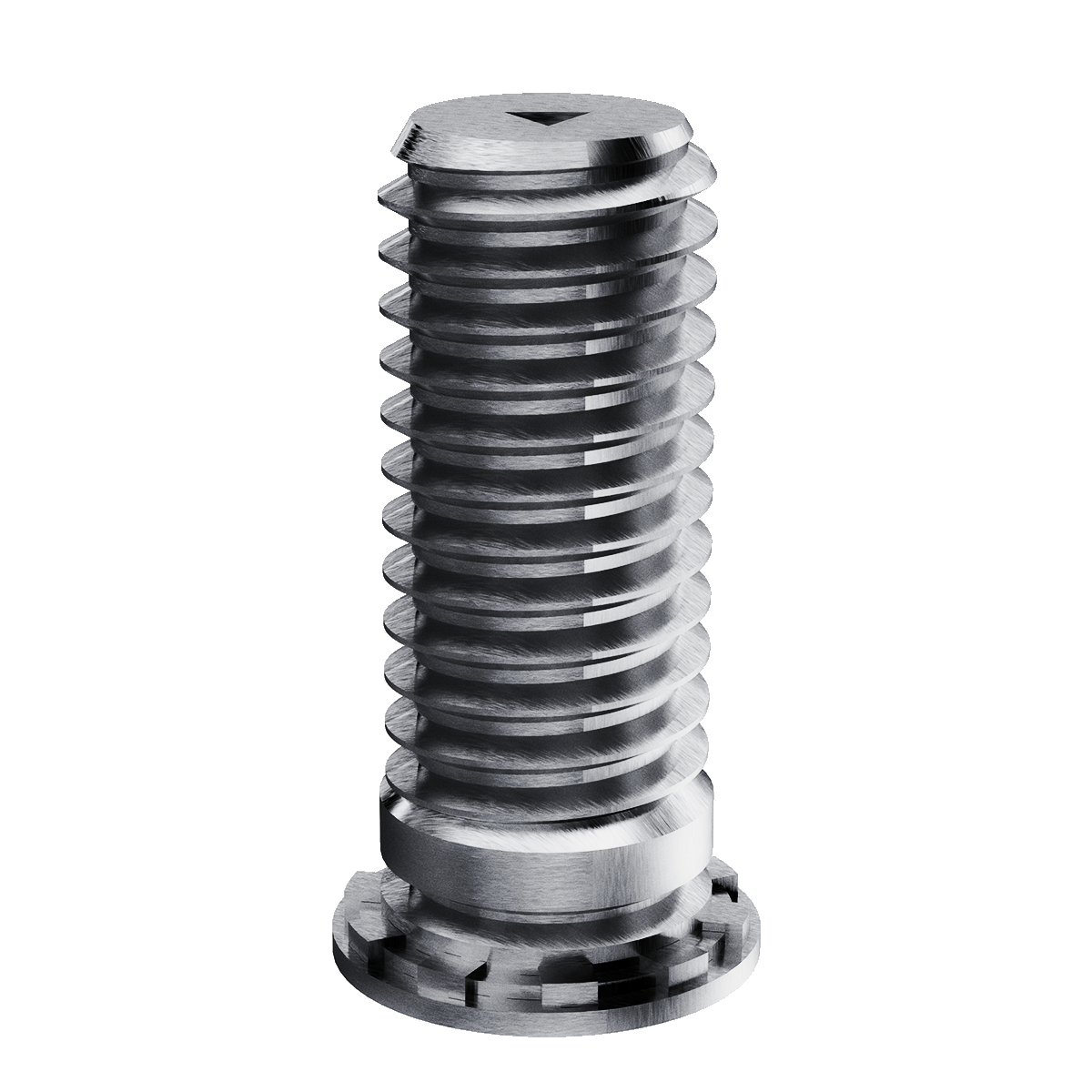

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M3x0.5 x 25, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M3x0.5 x 25, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M3x0.5 x 25, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M3x0.5 x 25, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, Metric, M3x0.5 x 25, 100 Pack

Captive Fastener

559-FH4M325

$99,999.00 CAD

Specifications :

MFG Part Number : CHTSM3-25
Product Group: CHTS
Material: Stainless Steel; 400 Series
Finish: Passivated
Thread Type: Metric
Thread Size: M3x0.5
Thread Code: M3
Hole Diameter: 3.00 +0.08 -0.00
Sheet Thickness: 1.0-2.4
304SS Sheet Hardness: 87 HRB

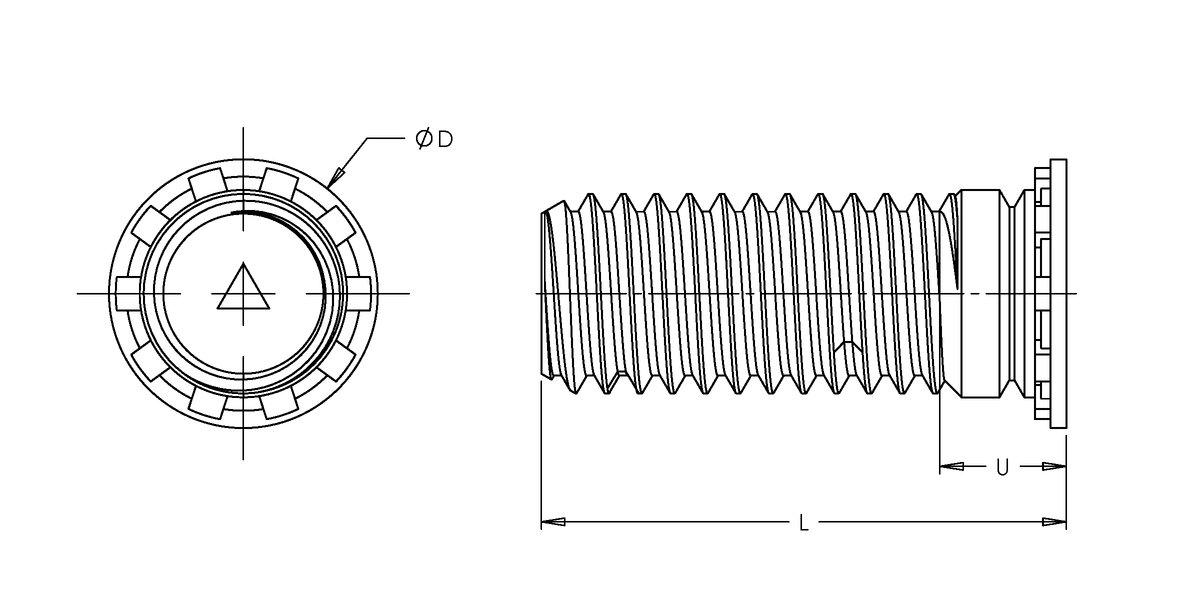

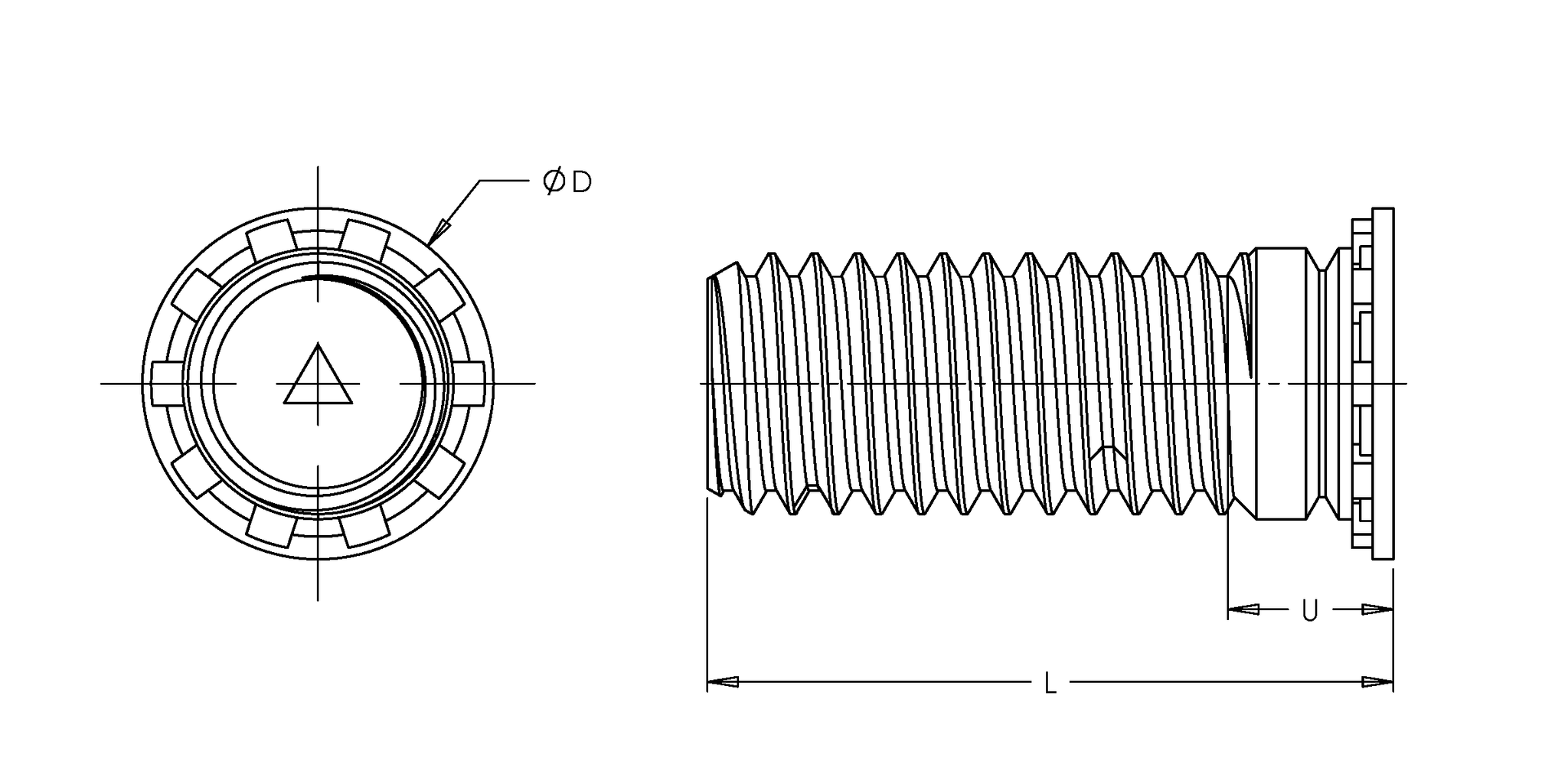

Dim D: 4.6 ±0.4
Dim L: 25.0 ±0.4
Dim U Max.: 2.1
CL to Edge Distance: 5.6
304SS Recommended Tightening Torque: 0.9 N-m
Installation Sheet Thickness: 0.045 SS
304SS Installation Force: 40 kN
304SS Push Out: 2220 N
304SS Torque Out: 1.8 N-m
304SS Pull Through: 3500 N
