Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 4-40 x 1.000, 100 Pack

Specifications :

• MFG Part Number : CHTS440-16
• Product Group: CHTS
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.111 +.003 -0.03
• Sheet Thickness: 0.040-.095
• 304SS Sheet Hardness: 87 HRB

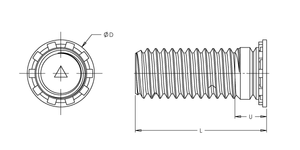

• Dim D: 0.176 ±0.015
• Dim L: 1.000 ±0.015
• Dim U Max.: 0.085
• CL to Edge Distance: 0.219
• 304SS Recommended Tightening Torque: 6 in-lbs
• 304SS Installation Force: 9000 lbs
• 304SS Push Out: 450 lbs
• 304SS Torque Out: 16 in-lbs
• 304SS Pull Through: 800 lbs.
