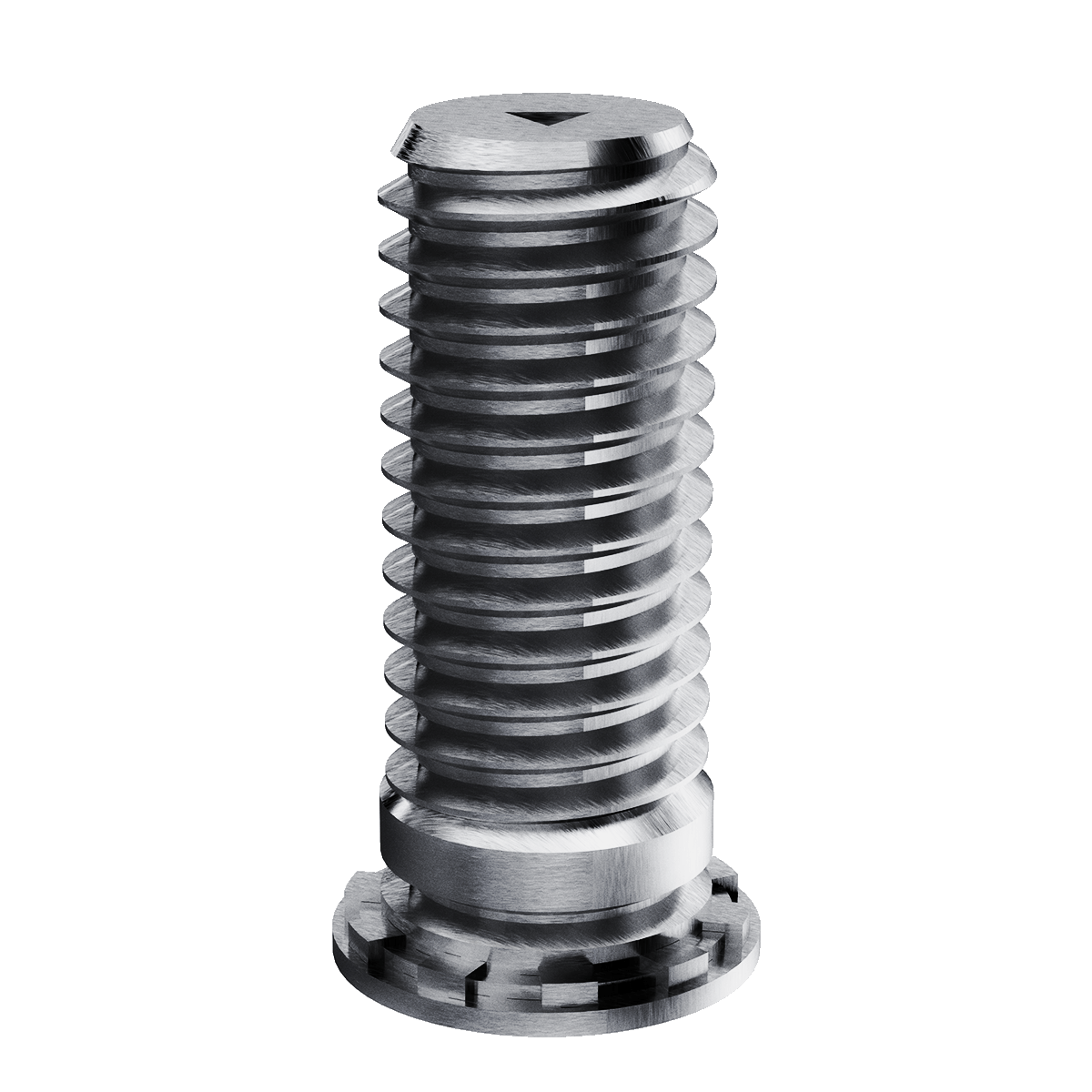

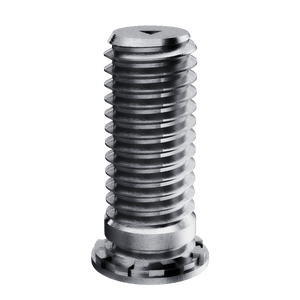

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 5/16-18 x 0.500, 50 Pack

Specifications :

• MFG Part Number : CHTS518-8
• Product Group: CHTS
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 5/16-18 UNC
• Thread Code: 518
• Hole Diameter: 0.311 +.003 -0.06
• Sheet Thickness: 0.093-0.148
• 304SS Sheet Hardness: 92 HRB

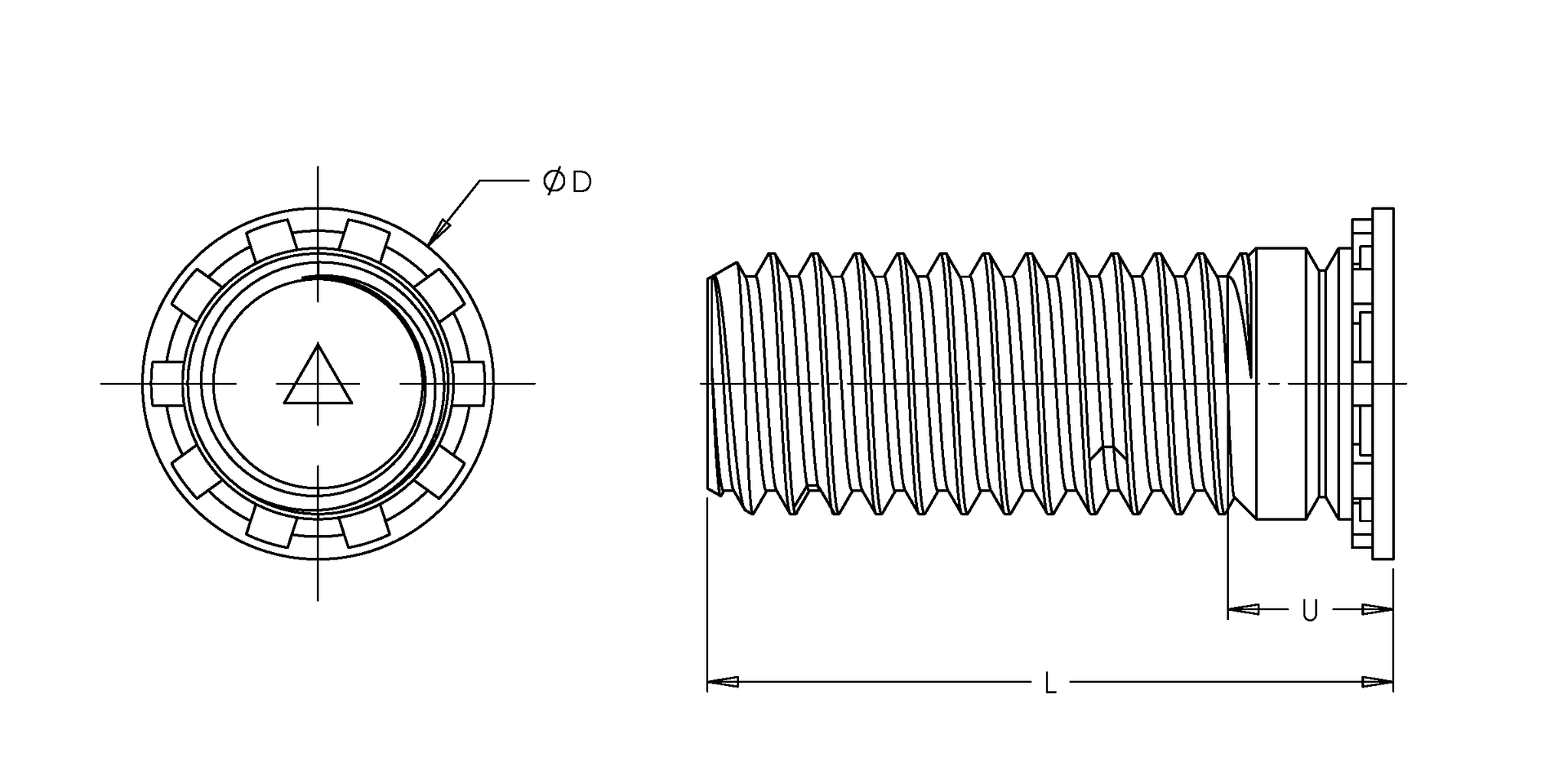

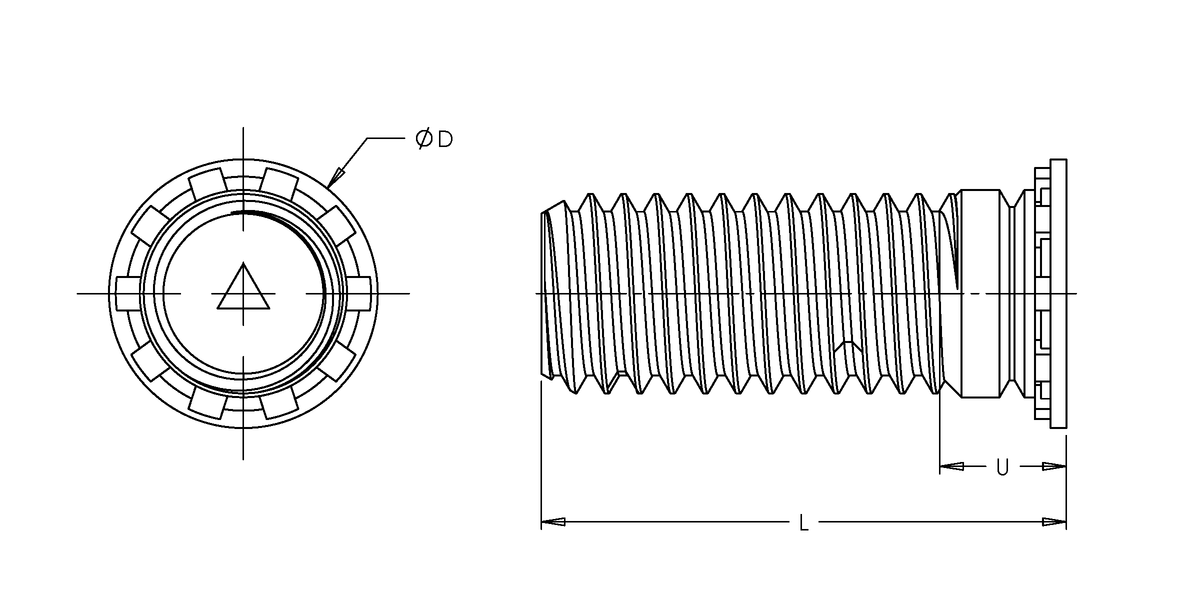

• Dim D: 0.376 ±0.015
• Dim L: 0.500 ±0.015
• Dim U Max.: 0.16
• CL to Edge Distance: 0.375
• 304SS Recommended Tightening Torque: 80 in-lbs
• 304SS Installation Force: 16000 lbs
• 304SS Push Out: 1775 lbs
• 304SS Torque Out: 295 in-lbs
• 304SS Pull Through: 7375 lbs.
