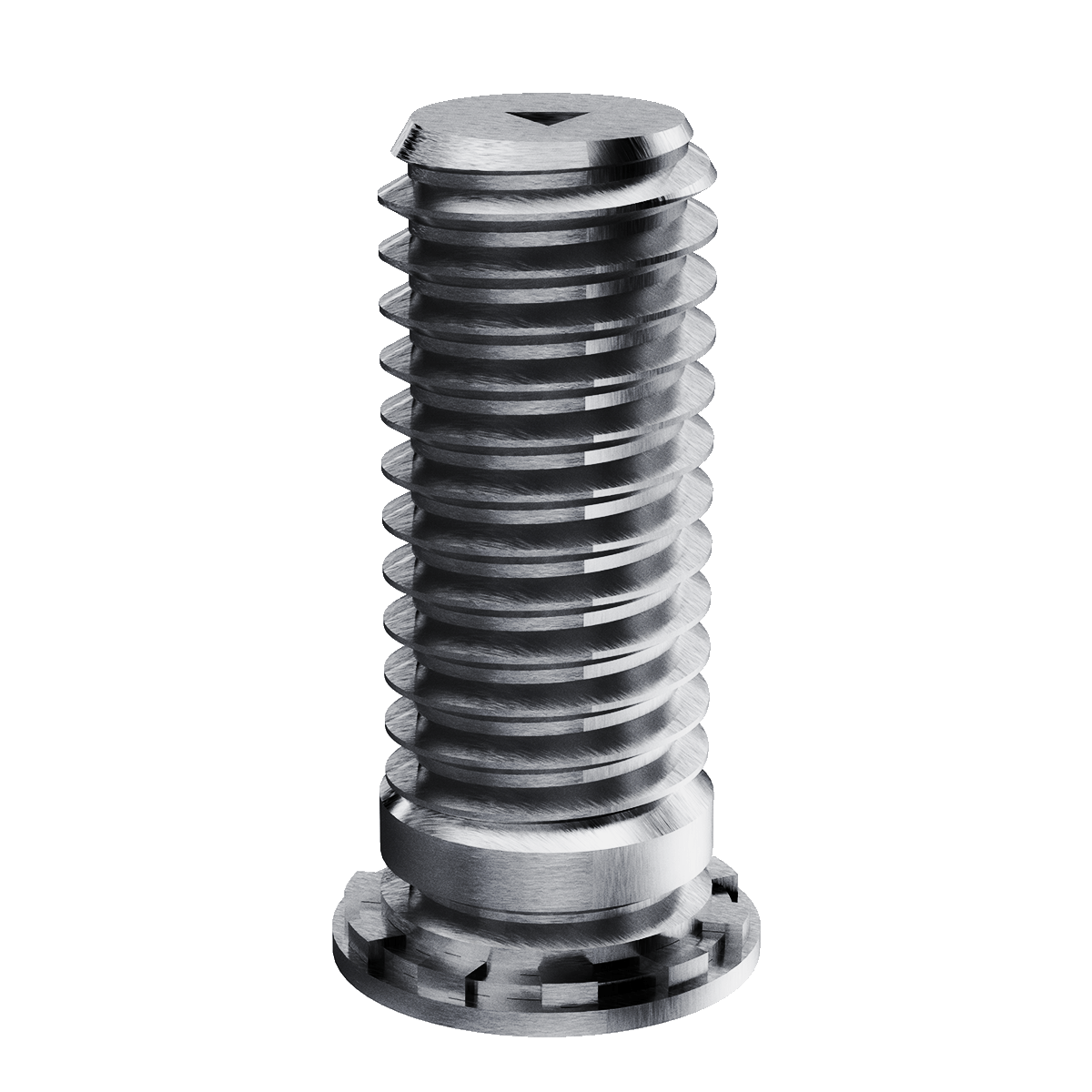

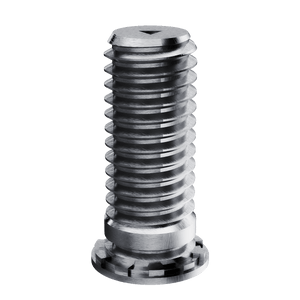

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 1/4-20 x 0.750, 50 Pack

Specifications :

• MFG Part Number : CHTS420-12
• Product Group: CHTS
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 1/4-20 UNC
• Thread Code: 420
• Hole Diameter: 0.249 +.003 -0.01
• Sheet Thickness: 0.062-0.117
• 304SS Sheet Hardness: 88 HRB

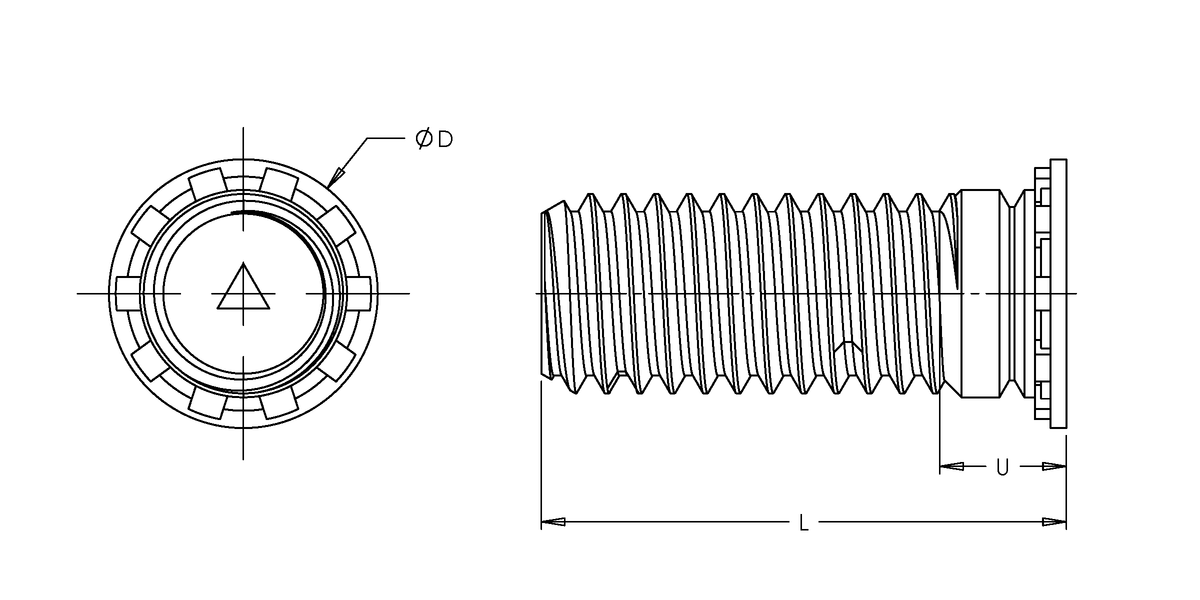

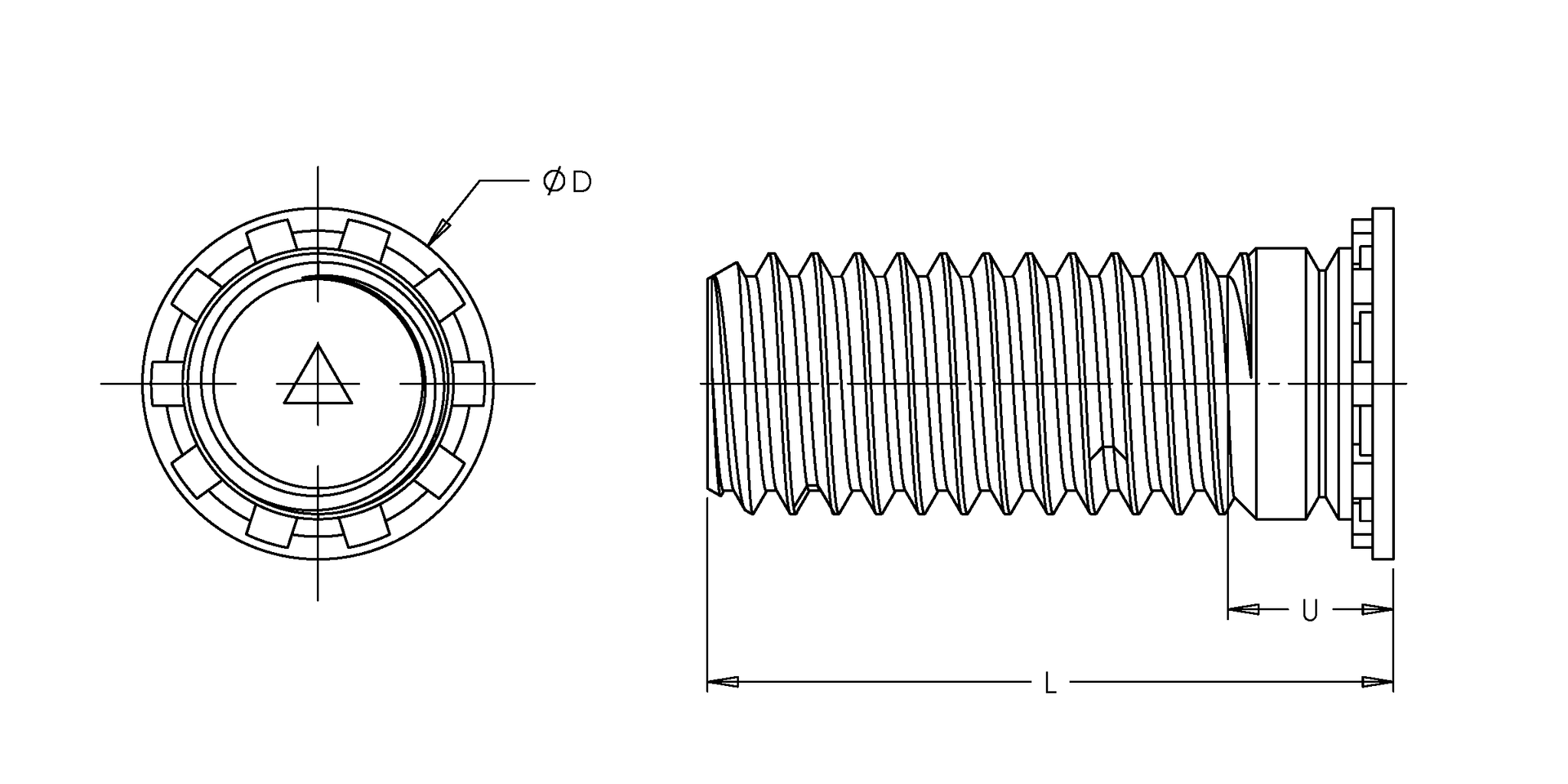

• Dim D: 0.337 ±0.015
• Dim L: 0.750 ±0.015
• Dim U Max.: 0.135
• CL to Edge Distance: 0.312
• 304SS Recommended Tightening Torque: 70 in-lbs
• 304SS Installation Force: 13000 lbs
• 304SS Push Out: 1600 lbs
• 304SS Torque Out: 156 in-lbs
• 304SS Pull Through: 3900 lbs.
