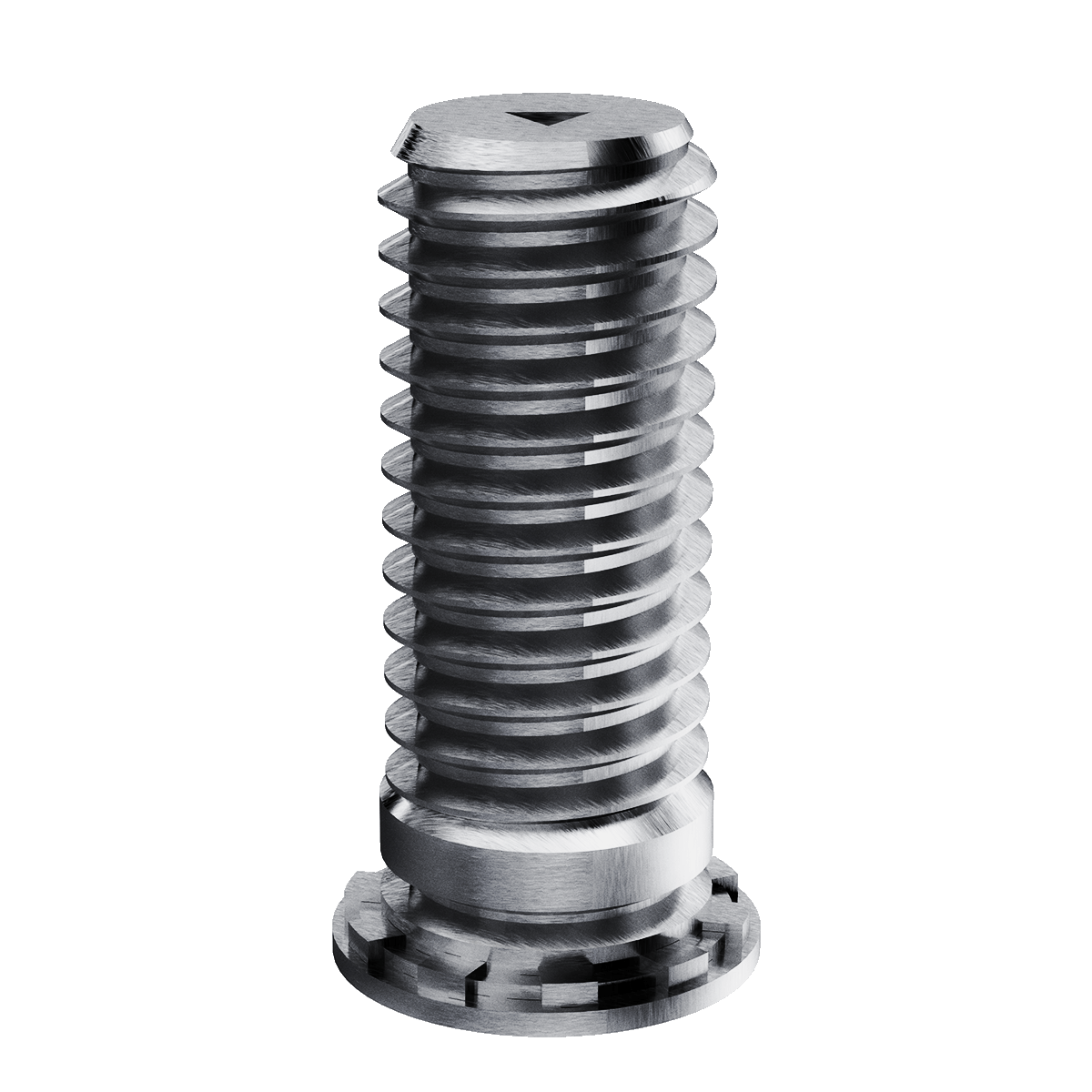

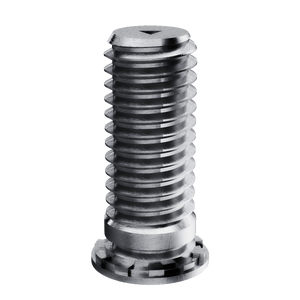

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 10-32 x 0.312, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 10-32 x 0.312, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 10-32 x 0.312, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 10-32 x 0.312, 100 Pack

Self-Clinching Stud, For SS, 400 Series Stainless Steel, Passivated, 10-32 x 0.312, 100 Pack

Captive Fastener

559-FH40325

$99,999.00 CAD

Specifications :

MFG Part Number : CHTS1032-5
Product Group: CHTS
Material: Stainless Steel; 400 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: 10-32 UNF
Thread Code: 1032
Hole Diameter: 0.189 +.003 -0.00
Sheet Thickness: 0.040-.095
304SS Sheet Hardness: 86 HRB

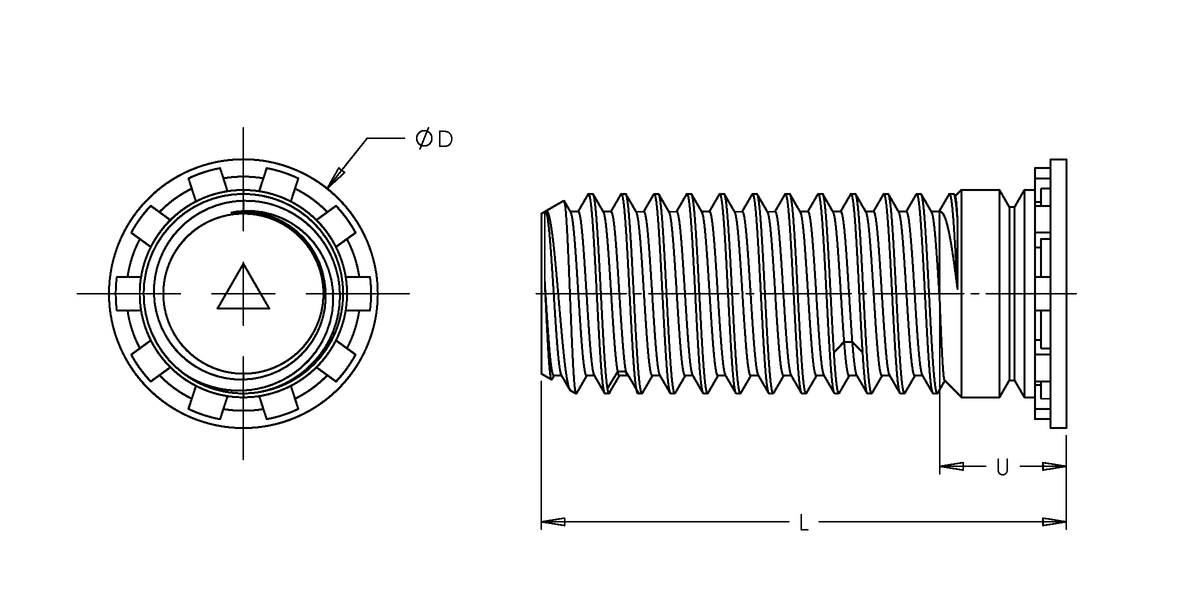

Dim D: 0.256 ±0.015
Dim L: 0.312 ±0.015
Dim U Max.: 0.1
CL to Edge Distance: 0.281
304SS Recommended Tightening Torque: 33 in-lbs
304SS Installation Force: 12000 lbs
304SS Push Out: 800 lbs
304SS Torque Out: 95 in-lbs
304SS Pull Through: 2250 lbs.
