Self-Clinching Nut 300 Series Stainless Steel Passivated 10-24, Sheet Thick.: 0.030, 100 Pack

Specifications :

• MFG Part Number : CS1024-0
• Product Group: CS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.250 +0.003 -0.00
• Sheet Thickness: 0.03

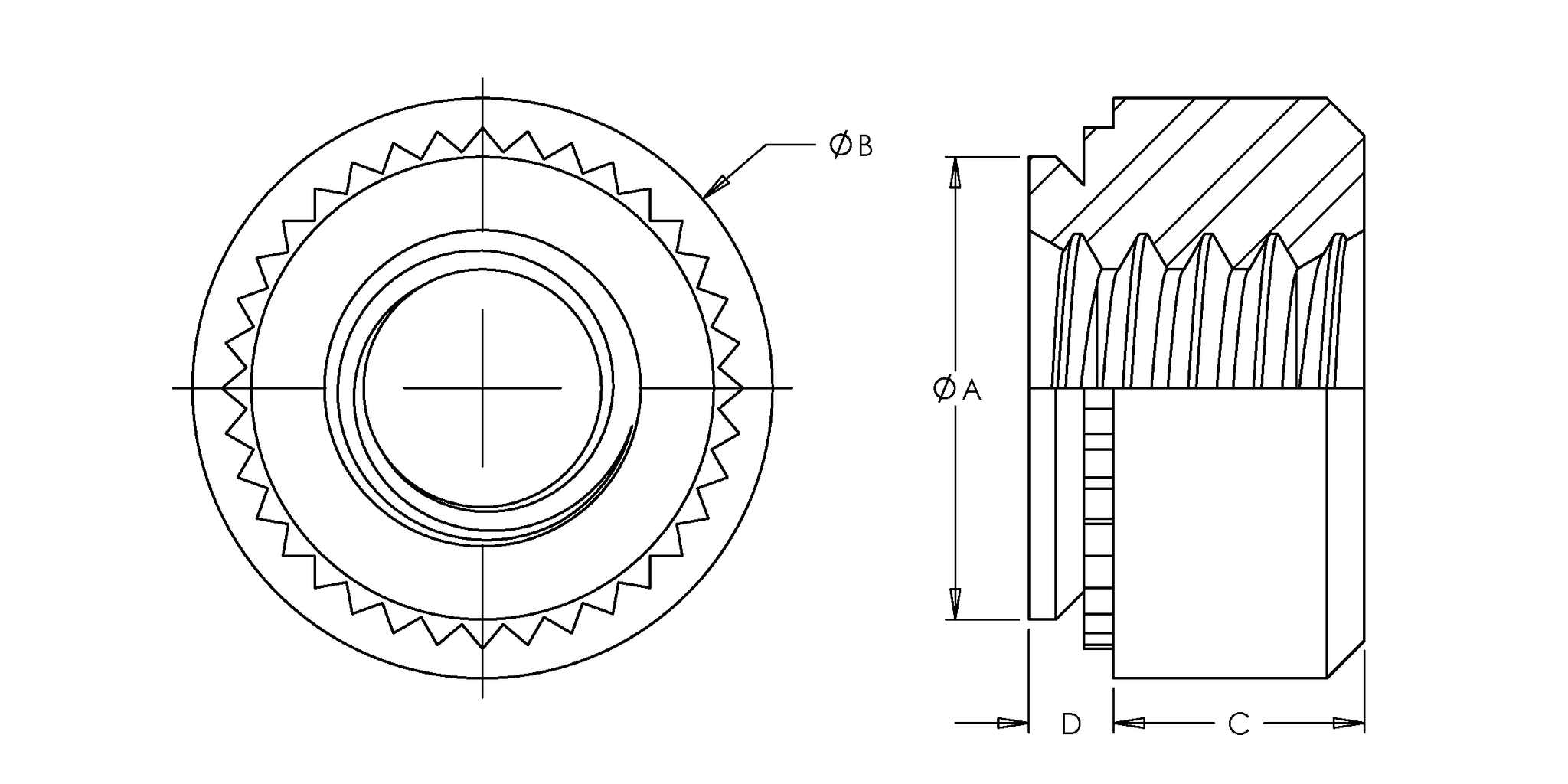

• Dim A Max.: 0.249
• Dim B: 0.340 ±0.010
• Dim C: 0.090 ±0.010
• Dim D Max.: 0.03
• CL to Edge Distance: 0.28
• CRS Installation Force: 4000-9000 lbs
• CRS Push Out: 32 in-lbs
• 5052 H34 Aluminum Installation Force: 2500-3500 lbs
• 5052 H34 Aluminum Push Out: 68 lbs
• 5052 H34 Aluminum Torque Out: 26 in-lbs
