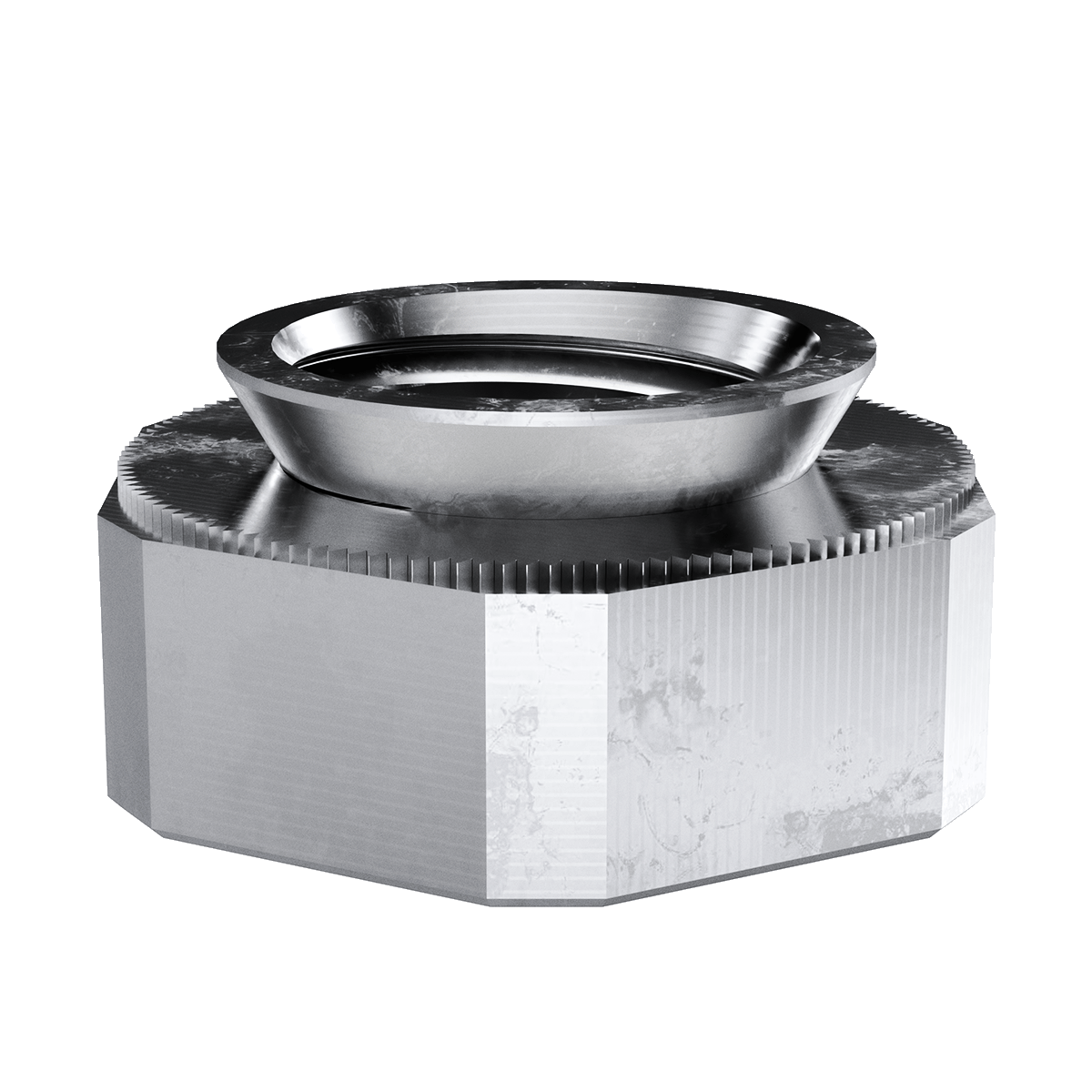

Self-Clinching Nut, KAL-Self-Clinching Nut, Steel, Zinc Clear, Metric, M5x0.8 x 1, 100 Pack

Self-Clinching Nut, KAL-Self-Clinching Nut, Steel, Zinc Clear, Metric, M5x0.8 x 1, 100 Pack

Self-Clinching Nut, KAL-Self-Clinching Nut, Steel, Zinc Clear, Metric, M5x0.8 x 1, 100 Pack

Self-Clinching Nut, KAL-Self-Clinching Nut, Steel, Zinc Clear, Metric, M5x0.8 x 1, 100 Pack

Self-Clinching Nut, KAL-Self-Clinching Nut, Steel, Zinc Clear, Metric, M5x0.8 x 1, 100 Pack

Captive Fastener

559-CKNM52

$99,999.00 CAD

Specifications :

MFG Part Number : CKNM5-2
Product Group: CKN
Material: Steel; Heat Treated
Finish: Zinc Clear
Thread Type: Metric
Thread Size: M5x0.8
Thread Code: M5
Hole Diameter: 6.50 +0.08 -0.00
Sheet Thickness: 1.4

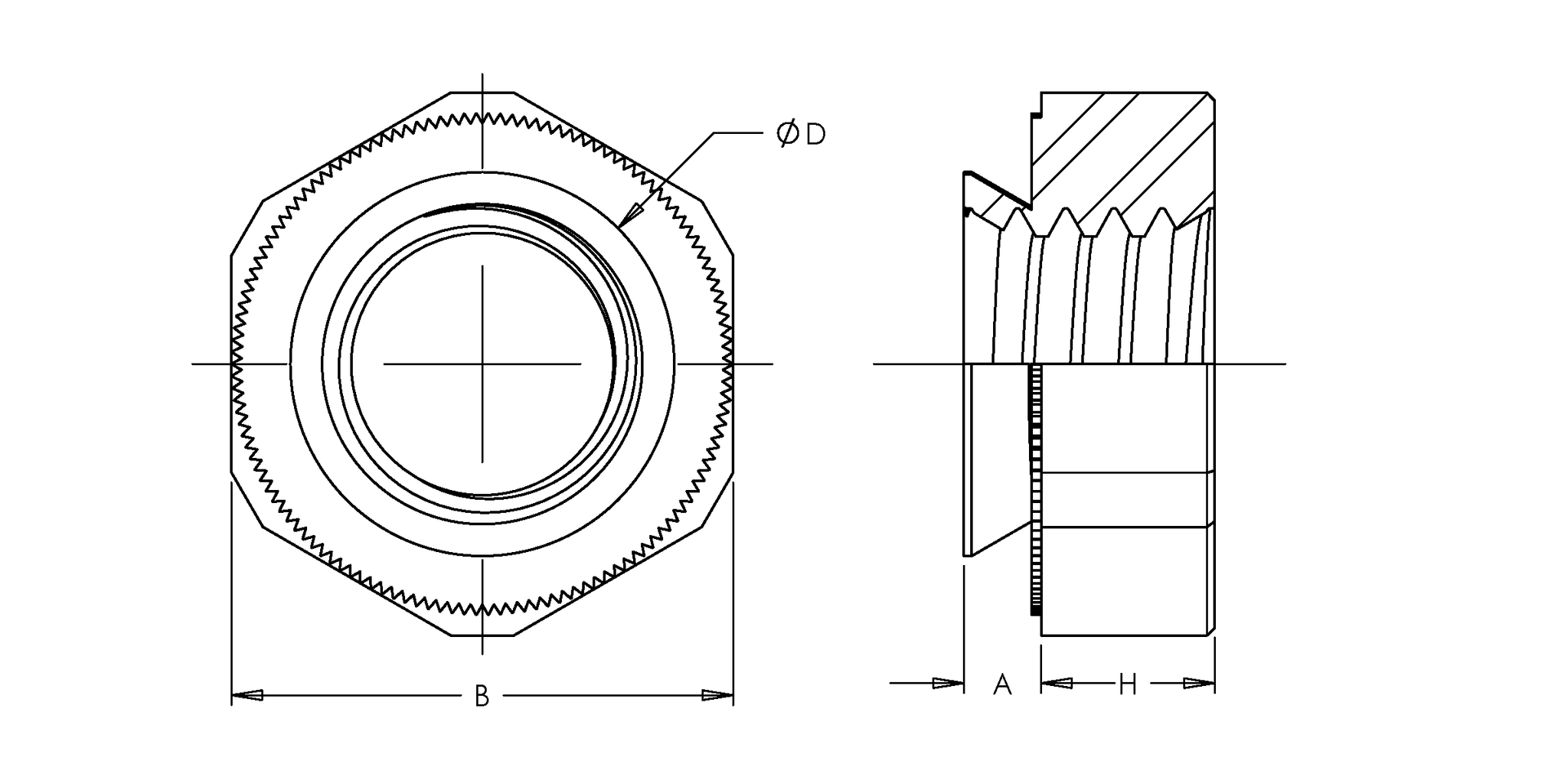

Dim A Max.: 1.4
Dim B: 8.00 +0.00 -0.20
Dim D Max.: 6.45
Dim H: 3.00 ±0.10
CL to Edge Distance: 6.5
CRS Push Out: 980 N
CRS Torque Out: 4.90 N-m
