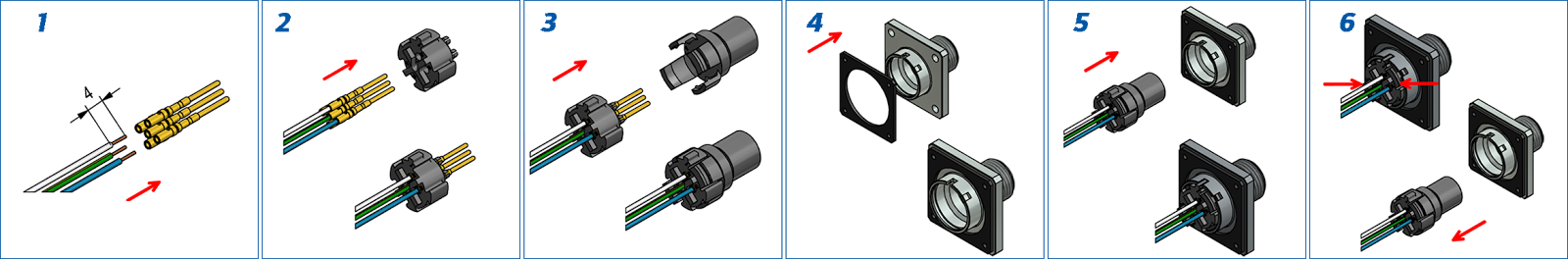

- Strip insulation from the wire, crimp the contact onto the wire
- Assemble the contact carrier, start with the centre contact
- Snap the assembled contact carrier into the connector housing
- Snap the connector housing into the socket housing
- Fix the adhesive seal to the socket housing
- Press the locking hook on connector housing and pull the connector housing out of socket housing
Home / Blogs / Electronic Components / How to: CONEC M12x1 Sockets field attachable for front and back panel mounting (4-, 5- and 8- position)
How to: CONEC M12x1 Sockets field attachable for front and back panel mounting (4-, 5- and 8- position)
